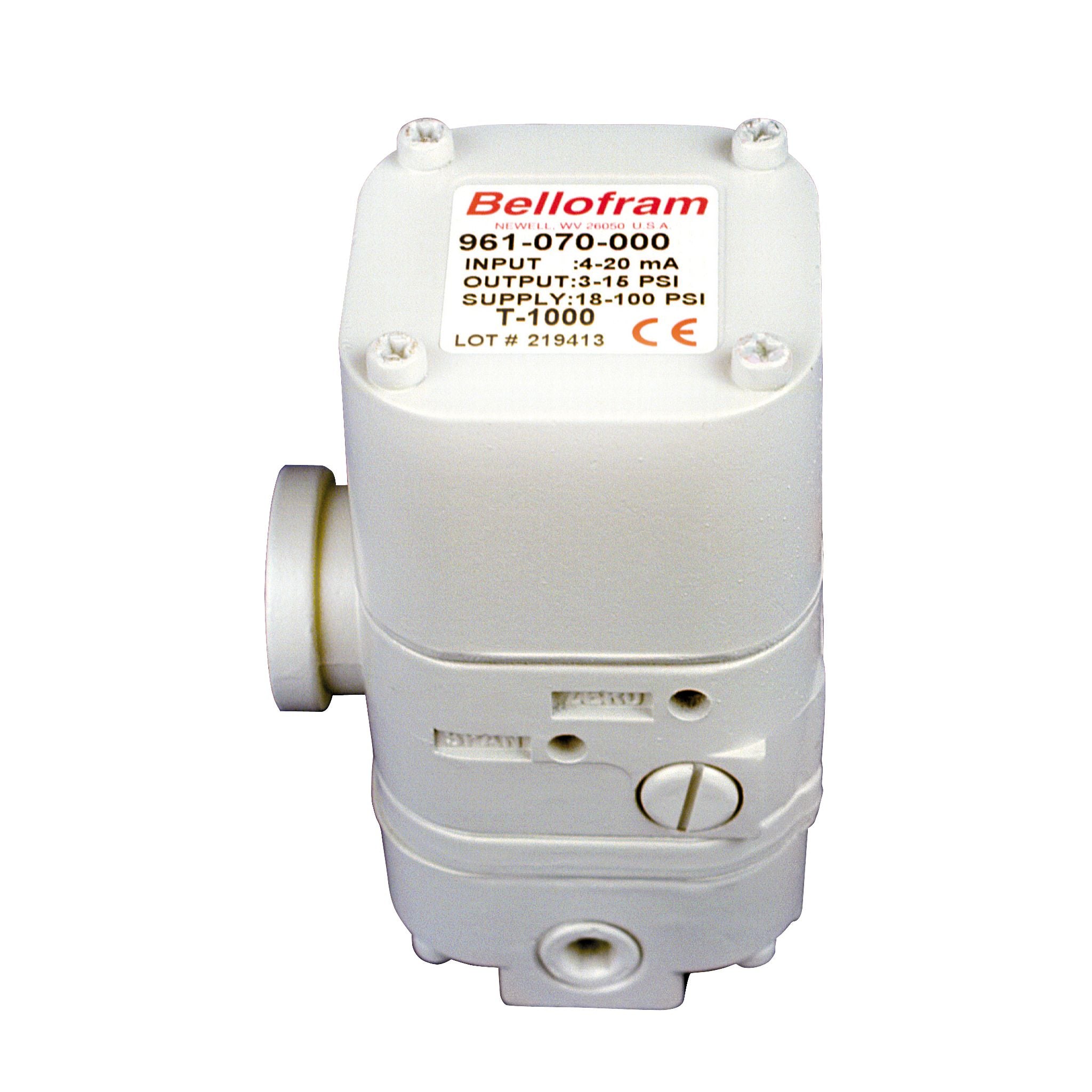

Type 1000 - T1000 I to P Transducer - Current to Pneumatic Transducer
The Bellofram Precision Controls Type 1000 I/P Transducer is a 4-20 mA current-to-pressure converter that provides proportional pneumatic control for industrial automation. This configuration converts a standard 4-20 mA signal to a 3-15 psi pneumatic output and uses an integral volume booster for flow up to 12 SCFM. With supply pressure capability up to 100 psi, low air consumption, field adjustability, and pipe, panel, bracket, or DIN-rail mounting, it is well suited to valve actuators, positioners, dampers, air cylinders, HVAC systems, and process instrumentation.
Features:
- Lightweight and Low Cost
- Built-in Volume Booster
- Small Size
- Field Reversible
- Low Air Consumption
- Mounts at Any Angle
- Convenient External Span & Zero Adjusts (Except for Explosion Proof Models)
- Wide Supply Pressure Range
- Low Supply Pressure Sensitivity
- Valve Actuators
- Damper and Louver Actuators
- Valve Positioners
- Controllers
- Relays
- Air Cylinders
- Clutches and Brakes
- Liquid, Gas and Slurry Processing Instrumentation
- HVAC Systems
- Pulp and Paper Handling Controls
- Fabric or Textile Processing Systems
- Energy Management Systems
- Petrochemical Processing Systems
- Split Ranging
- Open/Close Control
- QC Checking/Sorting
Options
Explosion Proof Mounting Kit, Explosion Proof Panel Mounting Kit, DIN Rail Kit, Hirschman Connector Kit (3-prong), Filter Kit, 60 micron, Output Gauges, Dielectric Strength Testing,
Output Port
1/4" NPT
Supply Port
1/4" NPT
Exhaust Port
No
Logic Output
No
Air Consumption
6
Exhaust Capture
No
Measured Outlet
Midrange
Measured Supply
100 psi
Port Size
1/4" NPT,
1/2" NPT
Flow Rate (scfm)
12 scfm
Mounting Options
Pipe, Panel, Bracket or DIN-rail
External Feedback
No
Output Gauge Port
Yes
Input Signal
4-20 mA
Analog Monitor Output
No
Electrical Port (STD)
1/2" NPT
Operating Temp (⁰C)
-29º to 60º
E/P Supply Requirements
loop-powered
Maximum Accuracy
1%
I/P Supply Requirements
loop-powered
Impedance Current (Ohms)
70-220
Current Input Ranges (mA)
4-20 mA
Voltage Input Ranges (DC)
n/a
Accuracy (% of span, typ.)
1
Hysterisis (% of span, typ.)
1
Width x Depth x Height (in.)
2 1⁄8" – 2 1⁄8"– 4"
External Span/Zero Adjustment
Yes
Output Pressure Ranges
0-100 PSIG
Impedance Input Ranges (Ohms)
530-985
Maximum Supply Pressure (psi)
100 psi
Minimum Supply Pressure (psi)
3 psig above output
Vibration/Shock Insensitivity
Some
Maximum Supply Pressure
100 PSIG
Output Pressure Range(s) (psi)
3-15 psi
Electrical Connections (option)
Terminal Block, Din 43650-A
Internal Feedback (closed loop)
No
Repeatability (% of span, typ.)
0.5
Exhaust Capacity (scfm) @ 5 psid
2
Mounting Orientation Insensitivity
Some
Independent Linearity (% of span, typ.)
1
