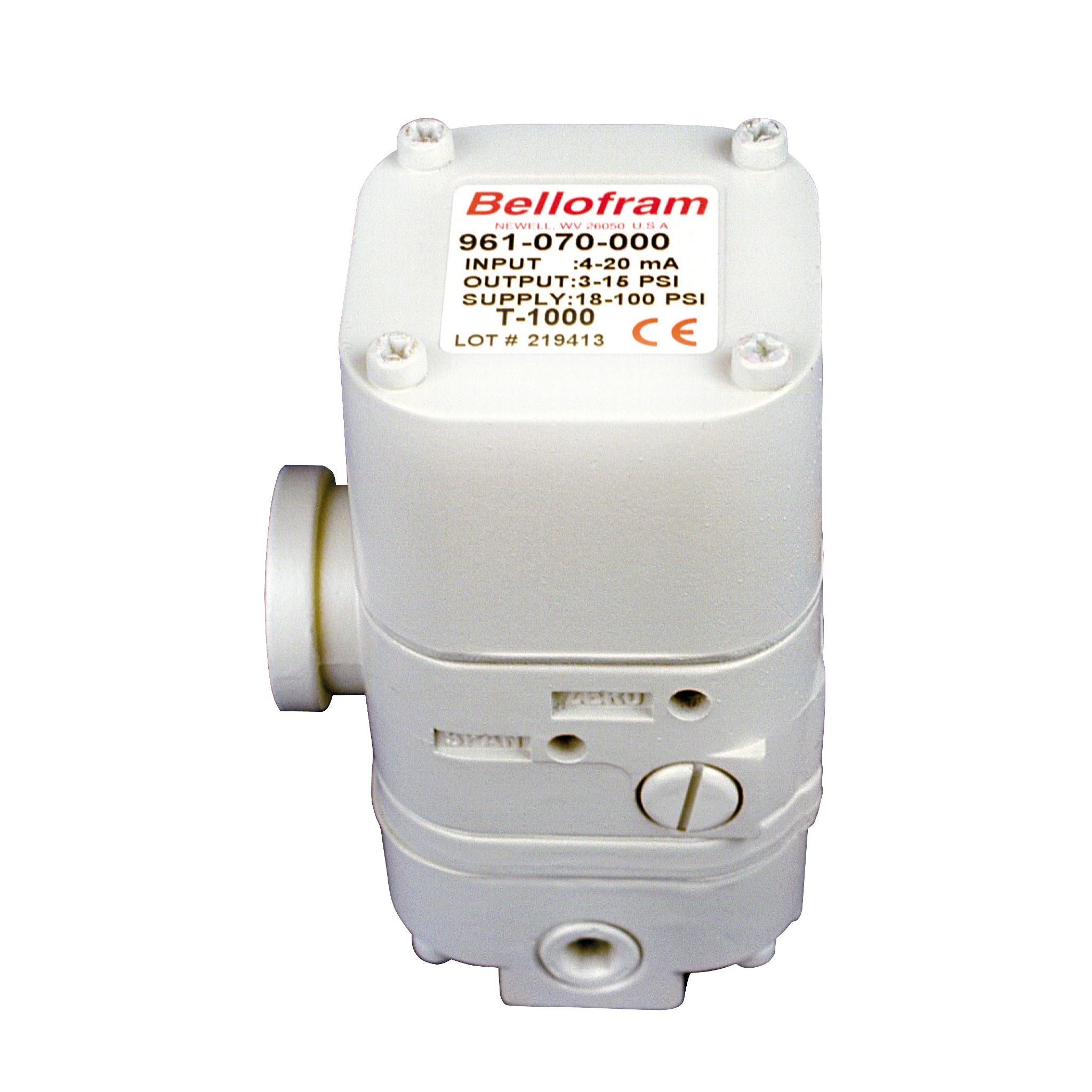

Type 1000 - T1000 E/P High Relief Transducer
The Type 1000 E/P High Relief Transducer is a high-performance electric to pneumatic conversion device engineered for applications requiring rapid exhaust and superior pressure stability. By accurately converting a voltage input signal into a proportional pneumatic output, this model ensures fast response times and dependable control in dynamic industrial environments.
Features:
- High Relief Design: Optimized for fast venting to maintain precise pressure regulation during sudden downstream changes or back-pressure spikes.
- High Flow Capacity: Features an integrated volume booster supporting up to 12 SCFM (339 SLPM) for rapid valve and damper actuation.
- Industrial Durability: Available in NEMA 4X, Intrinsically Safe, and Explosion Proof configurations for hazardous or corrosive locations.
- Flexible Operating Range: Reliable electric to pneumatic performance with supply pressures ranging from 3 psig up to 100 PSIG (6.9 BAR).
- Valve Actuators
- Damper and Louver Actuators
- Valve Positioners
- Controllers
- Relays
- Air Cylinders
- Clutches and Brakes
- Liquid, Gas and Slurry Processing Instrumentation
- HVAC Systems
- Pulp and Paper Handling Controls
- Fabric or Textile Processing Systems
- Energy Management Systems
- Petrochemical Processing Systems
- Split Ranging
- Open/Close Control
- QC Checking/Sorting
Output Port
1/4" NPT
Supply Port
1/4" NPT
Exhaust Port
No
Logic Output
No
Air Consumption
6
Exhaust Capture
No
Measured Outlet
Midrange
Measured Supply
100 psi
Flow Rate (scfm)
12 scfm
Mounting Options
Pipe, Panel, Bracket or DIN-rail
External Feedback
No
Output Gauge Port
Yes
Analog Monitor Output
No
Electrical Port (STD)
1/2" NPT
Operating Temp (⁰C)
-29º to 60º
E/P Supply Requirements
loop-powered
Current Input Ranges (mA)
na
Voltage Input Ranges (DC)
0-5 V
Accuracy (% of span, typ.)
1
Hysterisis (% of span, typ.)
1
Width x Depth x Height (in.)
2 1⁄8" – 2 1⁄8"– 4"
External Span/Zero Adjustment
Yes
Maximum Supply Pressure (psi)
100 psig
Minimum Supply Pressure (psi)
3 psig above output
Electrical Connections (option)
Terminal Block, Din 43650-A
Internal Feedback (closed loop)
No
Repeatability (% of span, typ.)
0.5
Exhaust Capacity (scfm) @ 5 psid
7
Mounting Orientation Insensitivity
Some
Independent Linearity (% of span, typ.)
1
