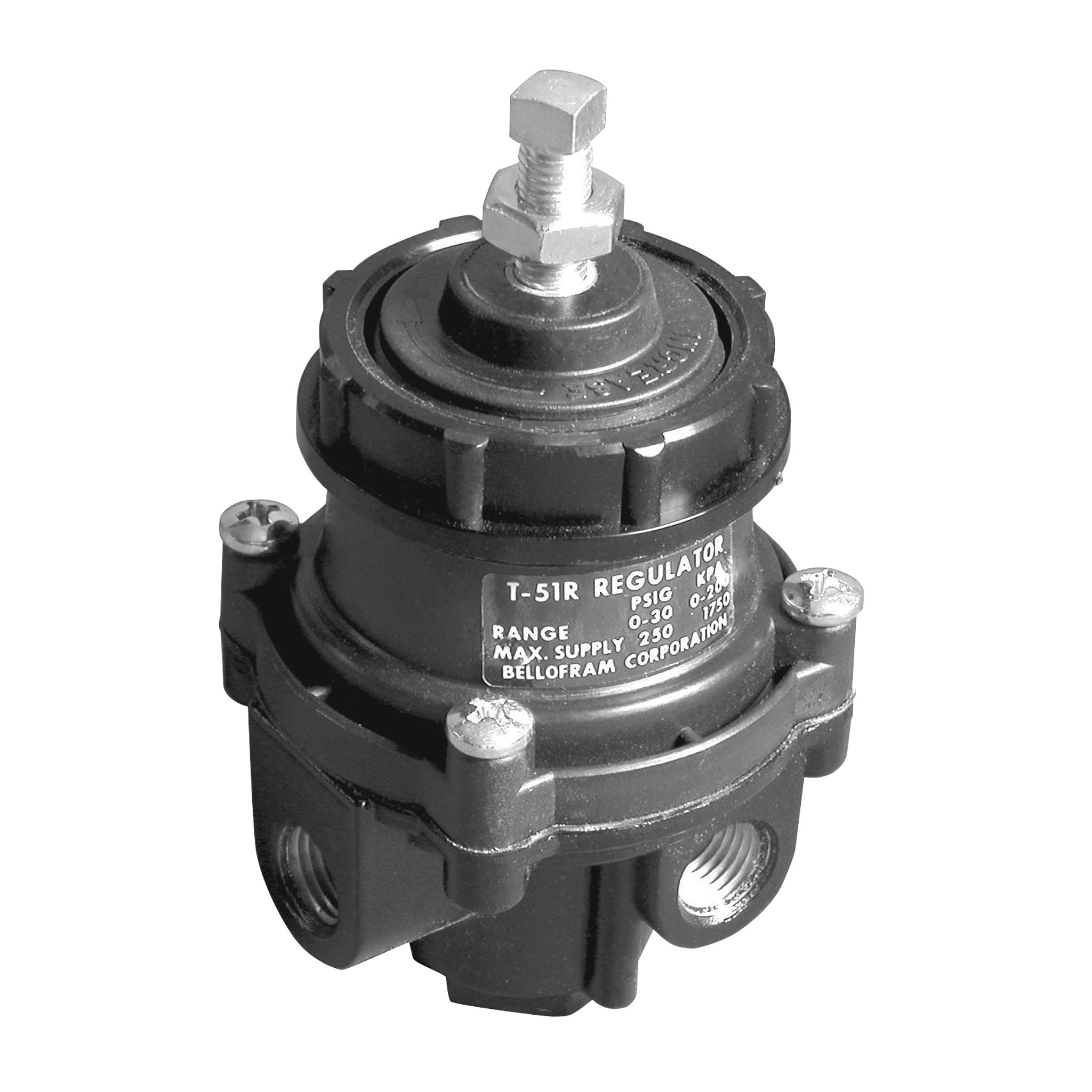

Type 51- T51 R Regulator
The Bellofram Type 51 Precision Air Regulator series offers a high-performance regulator in a compact, low cost package. It operates in output pressure ranges up to 100 psig / 6.9 BAR (120 psig / 8.3 BAR in T-51FR Corrosive Tec), with a maximum supply pressure of 250 psi (17.3 BAR).
Features:- Excellent regulation, stability and repeatability
- Low droop
- Small package size
- Panel, bracket or pipe mounting
- Meets ATEX II 2 G Dc T 6 (Non-electrical certification)
- Pneumatic Instruments
- Controllers
- Chucks
- Actuators
- Can be Through-Panel Mounted with the Supplied Mounting Nut
- Bracket-Mounted with the optional bracket
- Mounted by their ports
Size
2.5" X 2.5" X 4.59
Maximum Supply Pressure
250 psig (17.3 BAR)
Pressure Ranges
0-30 psig (0-2.1 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
Port Sizes
1/4 NPT
Sensitivity
1" (2.5 cm) of water
Forward Flow Capacity
15 SCFM
(425 LPM)
(425 LPM)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1 SCFM
(2.8 LPM)
(2.8 LPM)
Temperature Range
-0 to 125˚F (-18 to 52˚C)
Total Air Consumption @ Maximum Output
6 SCFH (2.8 LPM)
Materials of Construction
Aluminum, Plated Steel,
Brass, Acetal Resin,
Buna-N /Polyester, Music Wire
Brass, Acetal Resin,
Buna-N /Polyester, Music Wire
Effect of Supply Pressure Variation on Outlet Pressure
0.2 psig
Effect of Changes in Flow on Regulated Pressure
3 psig over flow of 10 SCFM (0-30
psig range, 1/4" NPT, 20 psig
set point)
psig range, 1/4" NPT, 20 psig
set point)
Mounting Options
Pipe, Panel or Bracket
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
