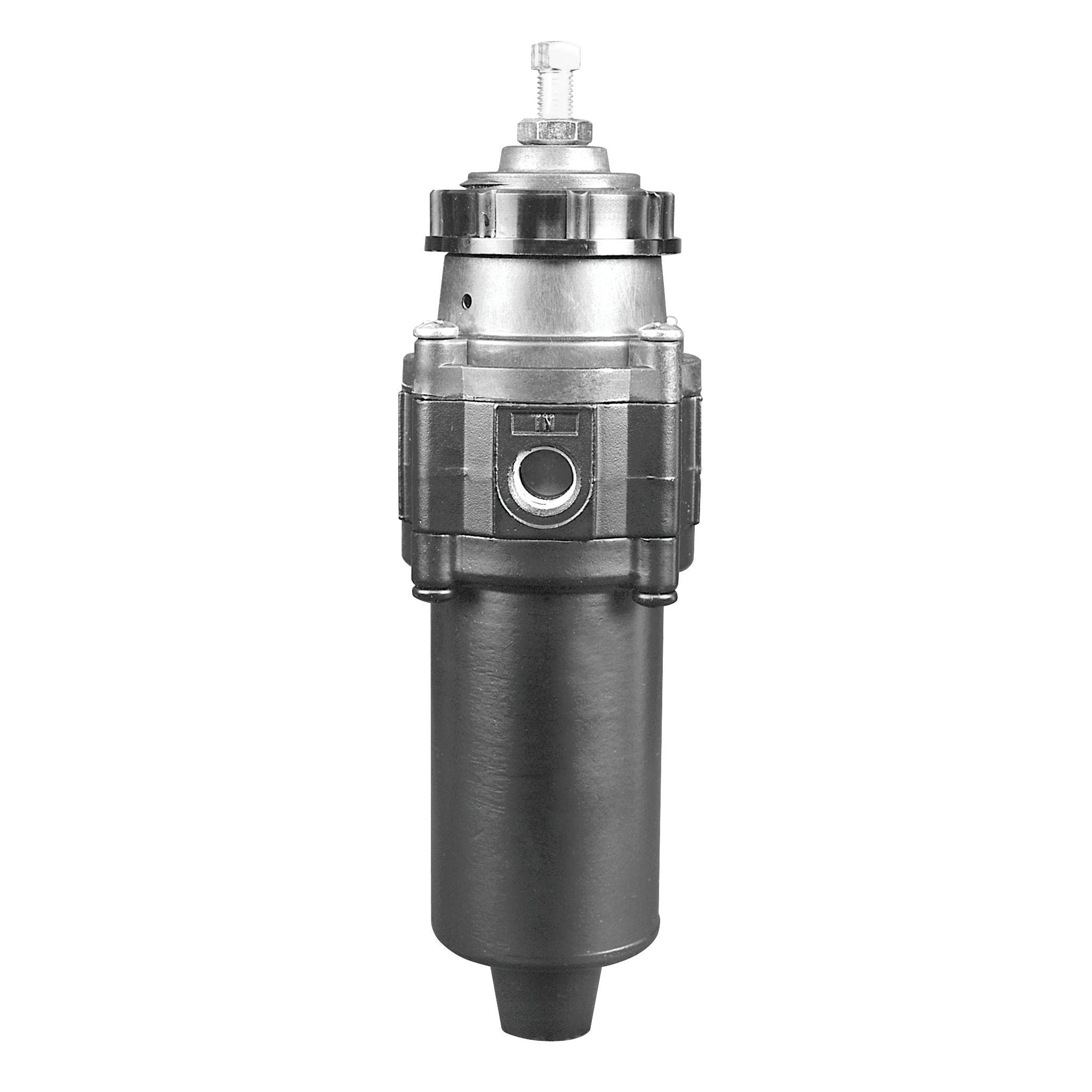

Type 51- T51 AFR Auto Filter-Regulator
These regulators are available
standard (Type 51R) or as filterregulators (Type 51FR and Type
51FRCT) and are even available with
an automatic drain, for automated
flushing out of contaminants (Type
51 AFR). These versatile regulators
provide excellent regulation for a
wide range of applications, including
pneumatic instruments, controllers,
chucks, and actuators. They can be
through-panel mounted with the supplied mounting nut, bracket-mounted
with the optional bracket or, due to
their light weight, mounted by their
ports. The Corrosive Tec is supplied
with a tapped bonnet vent, to allow
for the capture of exhaust air.
Features:
- Excellent regulation, stability and repeatability
- Corrosion-resistant construction (no brass components, Type 51FR and Type 51AFR)
- Low droop
- Small package size
- Panel, bracket or pipe mounting
- Meets ATEX II 2 G Dc T 6 (Non-electrical certification)
- Fluorocarbon pintle seat (Type 51FR, Type 51AFR and Type 51FRCT)
- Automatic drain option (Type 51AFR)
- Pneumatic Instruments
- Controllers
- Chucks
- Actuators
- Can be Through-Panel Mounted with the Supplied Mounting Nut
- Bracket-Mounted with the optional bracket
- Mounted by their ports
Size
2.5" X 2.5" X 8.6"
Options
Non-Relieving, Knob, 5 Micron Filter, Epoxy Finish, Mounting Bracket, Pressure Gauge, Fluorocarbon Diaphragm, Coalescing Filter
Bleed Rate
No Bleed Rate
Port Sizes
1/4 NPT
Sensitivity
1" (2.5 cm) of water
Filter/Dripwell
No
Pressure Ranges
0-30 psig (0-2.1 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
Port Size
1/4" NPT
Mounting Options
Pipe, Panel or Bracket
Temperature Range
-0 to 125˚F (-18 to 52˚C)
Tamper Proof Option
No
Flow Capacity
0-25 SCFM
Forward Flow Capacity
20 SCFM
(566 LPM)
(566 LPM)
Output Pressure Ranges
0-30 psig (0-2.1 BAR)
Maximum Supply Pressure
256 psig (17.3 BAR)
Materials of Construction
Aluminum, Plated Steel,
Acetal Resin, Buna-N / Polyester,
Music Wire, Fluorocarbon
Acetal Resin, Buna-N / Polyester,
Music Wire, Fluorocarbon
Maximum Supply Pressure
250 PSIG
Output Pressure Range(s)
0-30 PSIG,
0-60 PSIG,
0-120 PSIG
Total Air Consumption @ Maximum Output
6 SCFH (2.8 LPM)
Effect of Changes in Flow on Regulated Pressure
2.5 psig over flow of 10 SCFM (0-
30 psig range, 1/4" NPT, 20 psig
set point)
30 psig range, 1/4" NPT, 20 psig
set point)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1 SCFM
(2.8 LPM)
(2.8 LPM)
Effect of Supply Pressure Variation on Outlet Pressure
0.45 psig max
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
