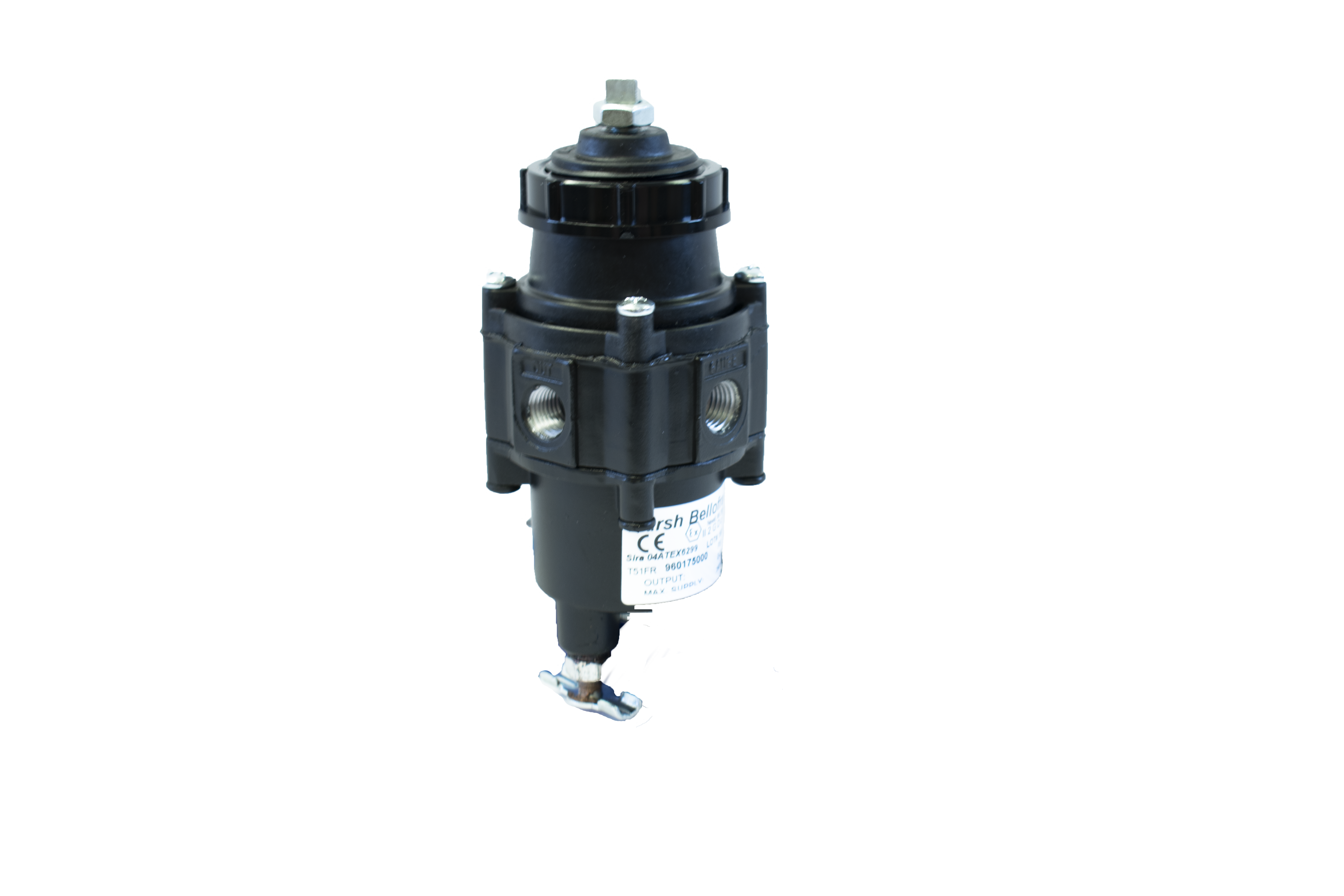

Type 51- T51 FR Filter-Regulator
These regulators are available
standard (Type 51R) or as filterregulators (Type 51FR and Type
51FRCT) and are even available with
an automatic drain, for automated
flushing out of contaminants (Type
51 AFR). These versatile regulators
provide excellent regulation for a
wide range of applications, including
pneumatic instruments, controllers,
chucks, and actuators. They can be
through-panel mounted with the supplied mounting nut, bracket-mounted
with the optional bracket or, due to
their light weight, mounted by their
ports. The Corrosive Tec is supplied
with a tapped bonnet vent, to allow
for the capture of exhaust air.
Features:
- Excellent regulation, stability and repeatability
- Corrosion-resistant construction (no brass components, Type 51FR and Type 51AFR)
- Low droop
- Small package size
- Panel, bracket or pipe mounting
- Meets ATEX II 2 G Dc T 6 (Non-electrical certification)
- Fluorocarbon pintle seat (Type 51FR, Type 51AFR and Type 51FRCT)
- Pneumatic Instruments
- Controllers
- Chucks
- Actuators
- Can be Through-Panel Mounted with the Supplied Mounting Nut
- Bracket-Mounted with the optional bracket
- Mounted by their ports
Size
2.5" X 2.5" X 6.95"
Port Sizes
1/4 NPT
Sensitivity
1" (2.5 cm) of water
Pressure Ranges
0-30 psig (0-2.1 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
Mounting Options
Pipe, Panel or Bracket
Temperature Range
-0 to 125˚F (-18 to 52˚C)
Forward Flow Capacity
20 SCFM
(566 LPM)
(566 LPM)
Maximum Supply Pressure
253 psig (17.3 BAR)
Materials of Construction
Aluminum, Plated Steel,
Acetal Resin, Buna-N / Polyester,
Music Wire, Fluorocarbon
Acetal Resin, Buna-N / Polyester,
Music Wire, Fluorocarbon
Total Air Consumption @ Maximum Output
6 SCFH (2.8 LPM)
Effect of Changes in Flow on Regulated Pressure
2.5 psig over flow of 10 SCFM (0-
30 psig range, 1/4" NPT, 20 psig
set point)
30 psig range, 1/4" NPT, 20 psig
set point)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1 SCFM
(2.8 LPM)
(2.8 LPM)
Effect of Supply Pressure Variation on Outlet Pressure
0.45 psig max
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
