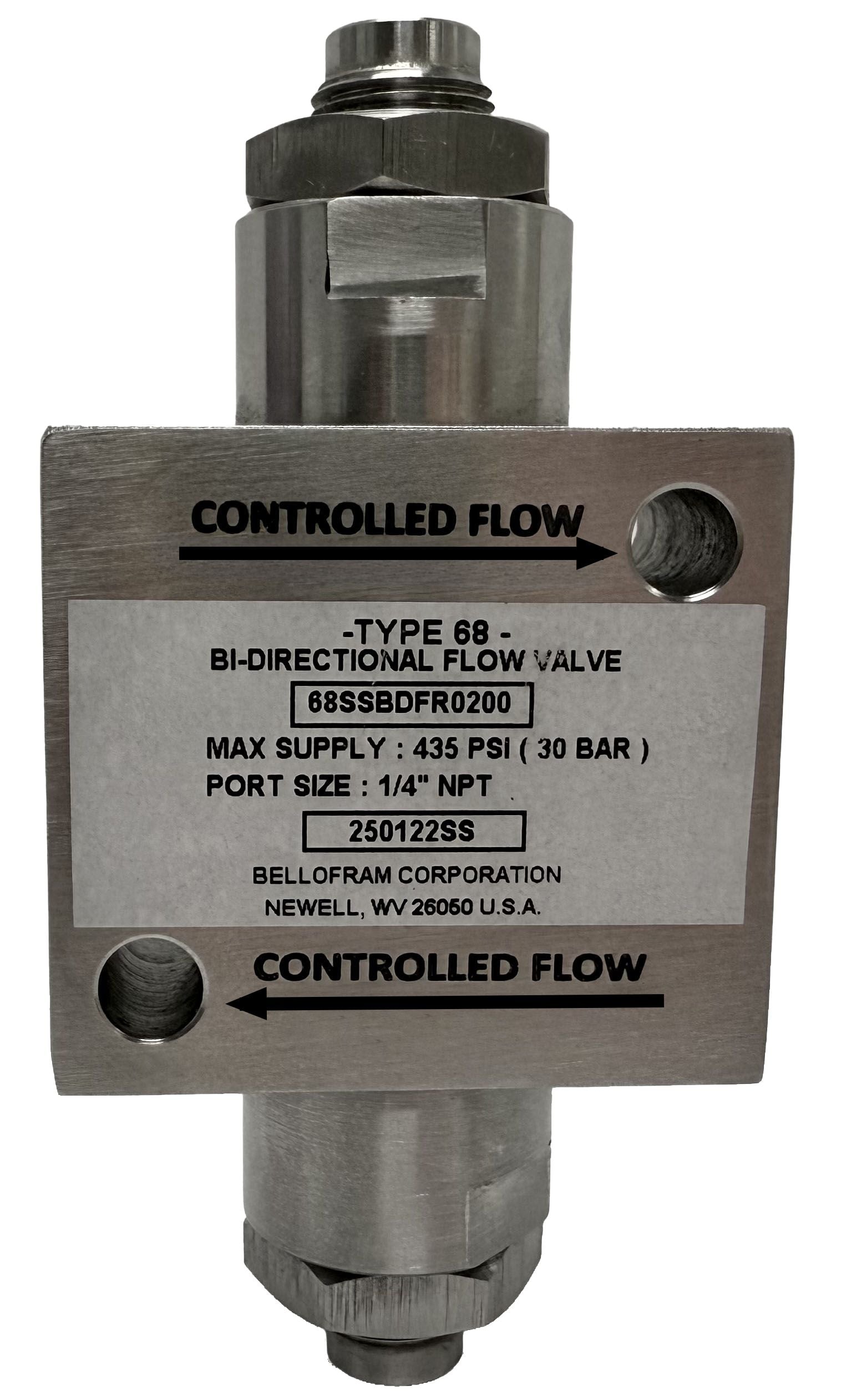

Type 68SS - Stainless Steel Bi-Directional Flow Regulator
The Type 68SS Stainless Steel Bi-Directional Flow Regulator unit is a high-performance product designed for process control, specifically for instrument air use in severe atmospheres. This bi-directional flow regulator controls the flow separately in each direction, making it ideal for actuators or cylinders where speed control is based on the position of the two valve plugs. Applications for the Type 68SS include air pressure regulation in industrial or medical controls, particularly where corrosion resistance is preferred or required. Both the internal materials and the body are made from bar stock SS316L stainless steel, ensuring durability and resistance to harsh conditions.
Features:- All SS316L stainless steel material
- Three port sizes of 1/4” to 1/2” NPTF
- High flow rate 0.60, 1/4” to 2.0, 1/2” CV
- Low temp nitrile elastomers -76°F/+176°F
- Instrument & sampling panels
- Corrosive and caustic mediums
- Industrial & specialty actuator control
- Food & beverage facilities and equipment
Port Sizes
1/4”, 3/8”, 1/2”
Port Size (NPT)
NPT - Standard
Temperature Range
-60°C to +80°C (-76°F to +176°F)
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
