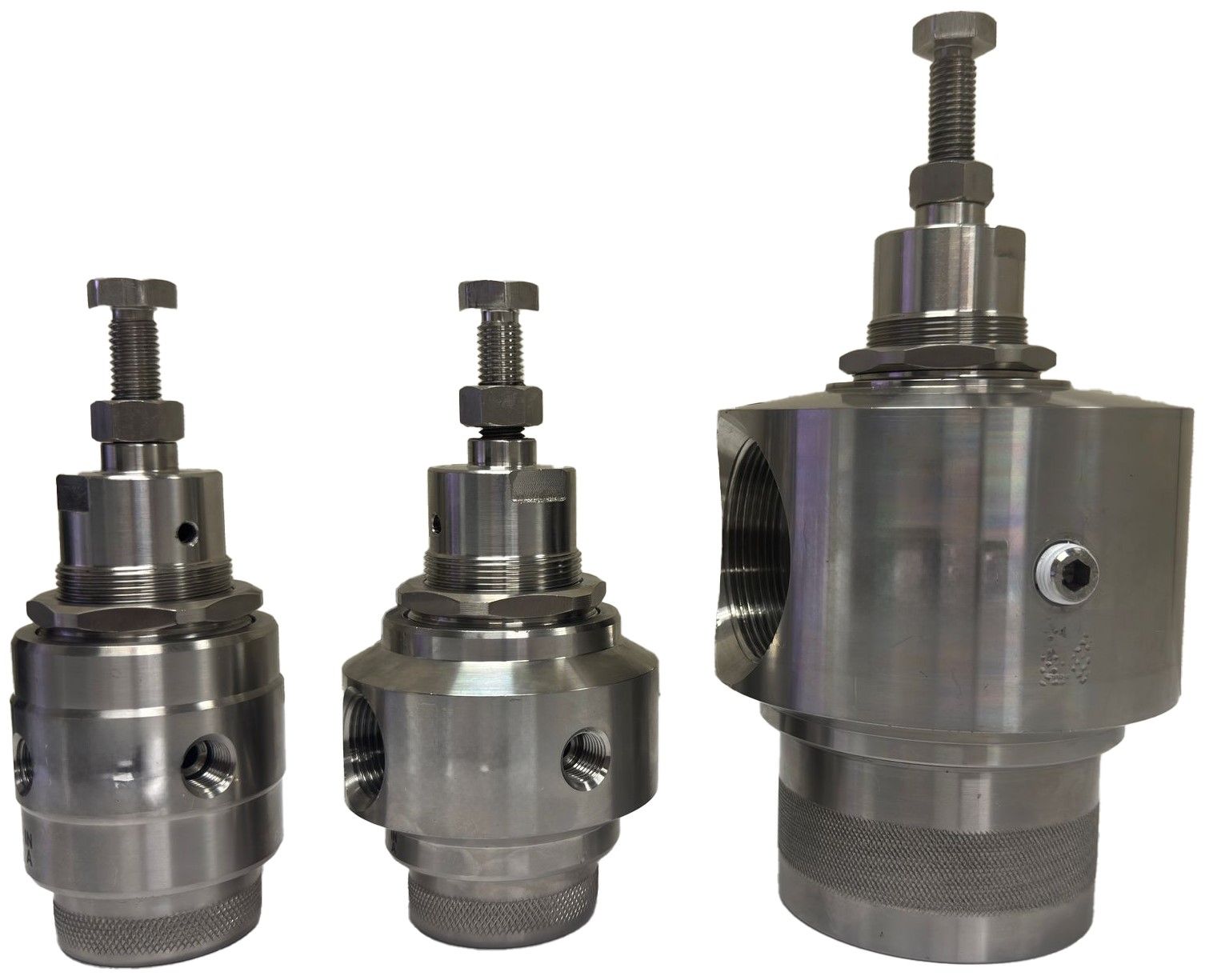

Type 62SS - T62SS Stainless Steel Pressure Regulator
The Type 62SS Stainless Steel Pressure Regulator is a direct- acting diaphragm pressure-reducing regulator. This ruggedly built regulator operates in pressure ranges up to 250 psig (17 BAR) with maximum inlet pressure up to 435 psig (30 BAR). The Type 62SS pressure regulator can be through-panel mounted with the mounting nut supplied or pipe mounted by its ports. The Type 62SS applications include clean steam for sanitizing, air pressure and industrial or medical gas pressure regulation. Ideal for when a corrosion-resistant regulator is preferred or required. All material internal as well as the body and bonnet is made from bar stock -316L stainless steel. Oxygen cleaning is available on the T62SS unit for use in clean environments, gases and medical application.
Features:- All SS316L stainless steel material
- Seven port sizes of 1/4” to 2” NPTF
- High flow rate 1.5, 1/4” to 9.9, 2” CV
- Five pressure ranges between 3 & 250 psig
- Low temp nitrile elastomers -76°F/+176°F
- Medical and bio-medical
- Instrument & sampling panels
- Corrosive and caustic mediums
- Industrial & specialty gas handling
- Pharmaceutical processing equipment
- Food & beverage facilities and equipment
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
