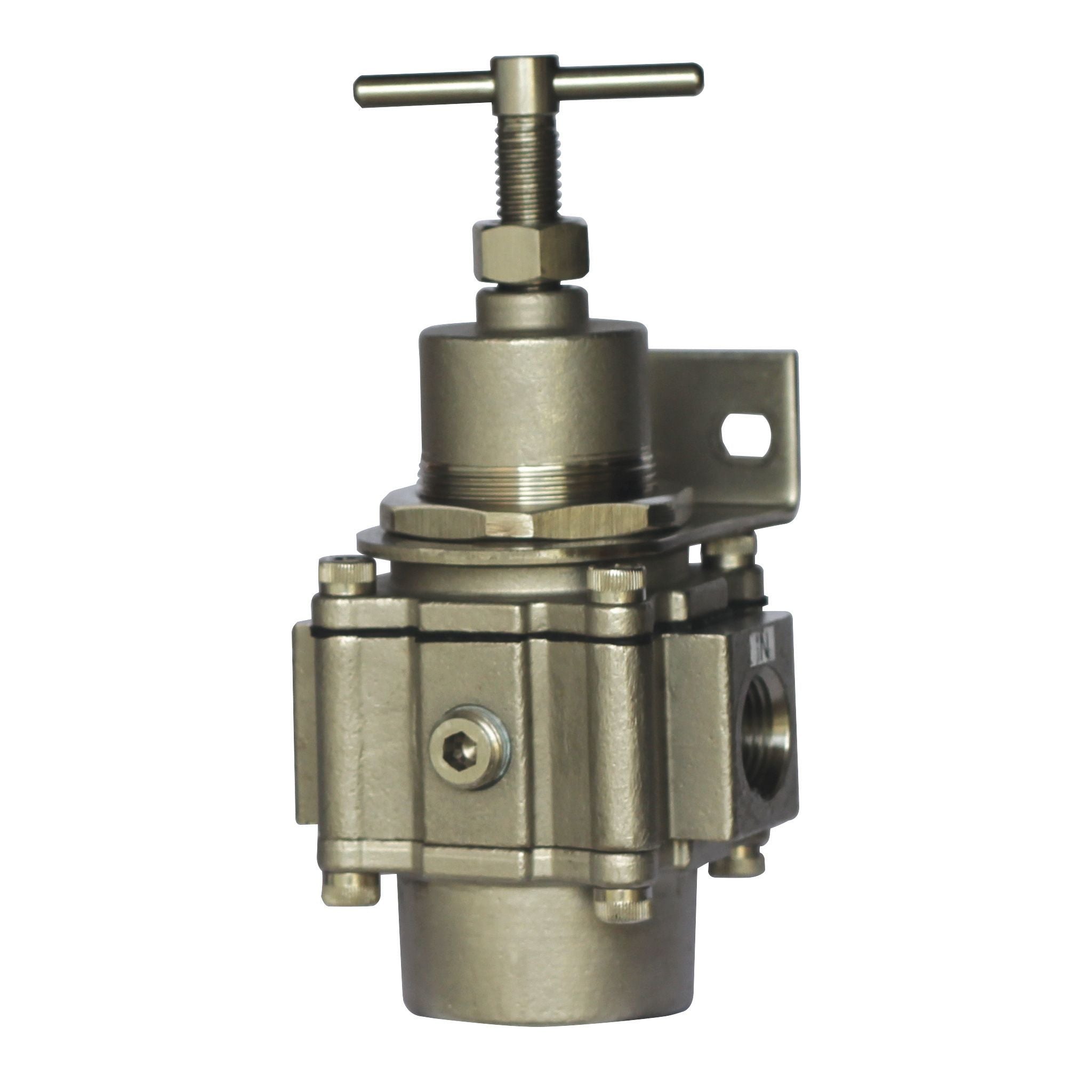

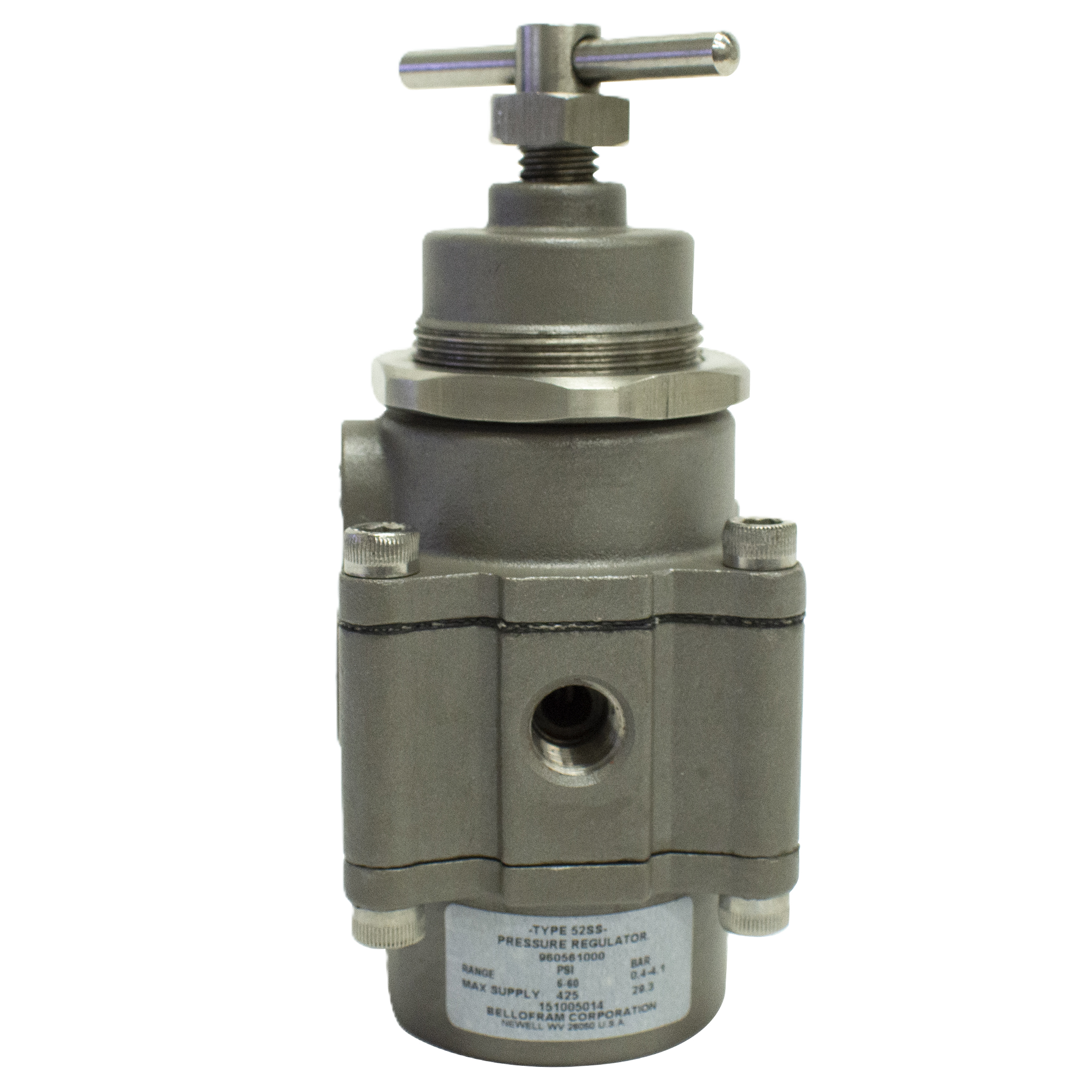

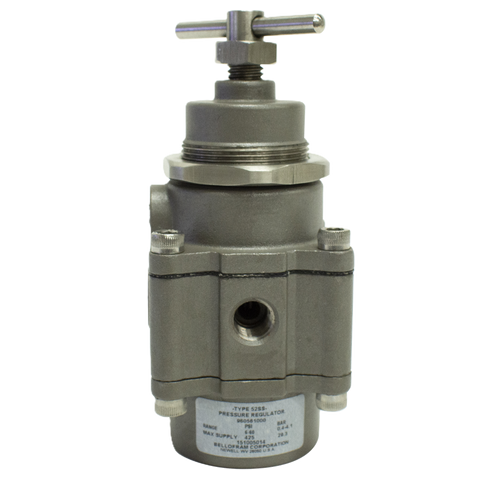

Type 52 SSR Std Stainless Steel Regulator
The Type 52SSR regulator product line is designed for service with a wide variety of corrosive gases and environments. Special construction features include 316 stainless steel for the housing and filter assemblies, with Nitrile Elastomers used for the control diaphragm and the supply valve.
Features:- Ideal for sour gas and corrosive applications or environments
- Excellent stability and repeatability
- Low droop
- Tapped vent for exhaust gas capture
- Built-in filter assemblies and dripwells
- Manual or automatic drain options
- Panel, bracket or pipe mounting
- Soft relief seat for low gas consumption
- Sour gas
- Offshore oil, gas & petrochemical
- Corrosive Environments
Options
Non-Relieving, Hex Head Adjustment
Size
3.2" X 2.4" X 6.8"
Tamper Proof Option
No
Filter/Dripwell
Yes
Maximum Supply Pressure
425 psig (29.3 BAR)
Pressure Ranges
3 - 30 psig (.2 - 2.1 BAR)
6 - 60 psig (.4 - 4.1 BAR)
12 - 125 psig (.9 - 8.8 BAR)
15 - 150 psig (1 - 10 BAR)
6 - 60 psig (.4 - 4.1 BAR)
12 - 125 psig (.9 - 8.8 BAR)
15 - 150 psig (1 - 10 BAR)
Port Sizes
1/4"
Sensitivity
± 1.0 PSIG (0.07 BAR)
Output Change
Output Change
Bleed Rate
No Bleed Rate
Forward Flow Capacity
38 scfm
(1075 lpm)
(1075 lpm)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1 scfm
(2.8 LPM)
(2.8 LPM)
Output Pressure Ranges
3 - 30 psig (.2 - 2.1 BAR)
Temperature Range
-4 to 176˚F (-20 to 80˚C)
Total Air Consumption @ Maximum Output
0.5 SCFH (0.24 LPM) Maximum
Materials of Construction
316 Stainless Steel
housing and screen
nitrile elastomers
housing and screen
nitrile elastomers
Effect of Supply Pressure Variation on Outlet Pressure
0.4 PSIG change in output pressure per 10 PSIG change in supply pressure
Effect of Changes in Flow on Regulated Pressure
N/A
Mounting Options
Pipe, Panel or Bracket
Filter Output Pressure Range(s)
0-30 PSIG,
0-60 PSIG,
0-120 PSIG,
0-150 PSIG
Filter Maximum Supply Pressure
400 PSIG
Filter Port Size
1/4" NPT
Filter Flow Capacity
26-100 SCFM
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
