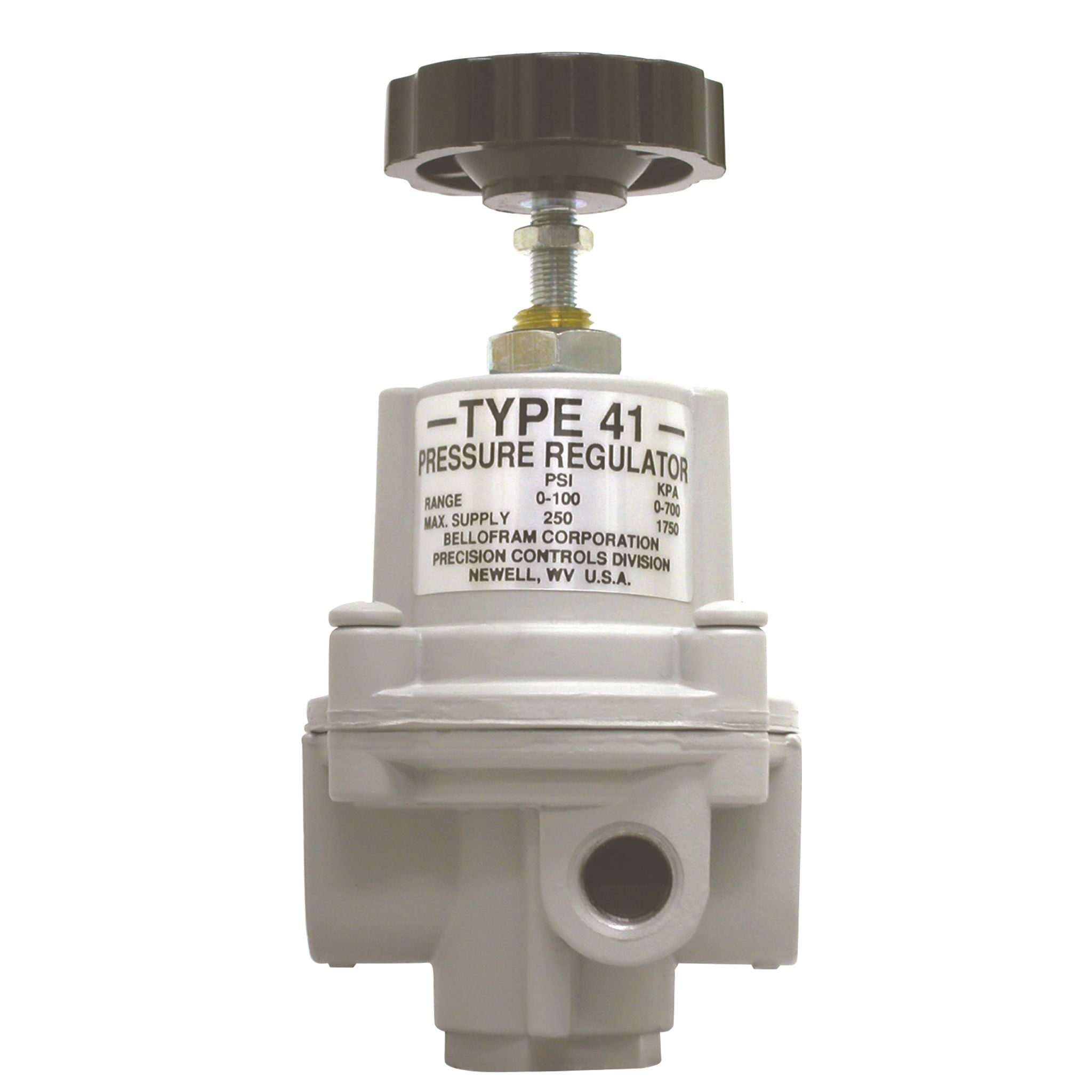

Type 41-1- T41-1 Adjustable Precision Regulator
Type 41 regulators deliver high flow capacity with low droop and high accuracy for demanding industrial pressure control. Bellofram’s rolling diaphragm improves sensitivity and regulation performance, while the compact body and multiple mounting options allow direct interchangeability with higher-cost competitor units. Built for tough environments, each regulator features a precision-cast aluminum housing, is pressure tested, chromate treated for internal corrosion resistance, and finished with vinyl paint for scratch and weather resistance. A soft-seat valve stem helps maintain stable control while tolerating dirt, and an aspirator supports downstream pressure to help reduce droop at high flow. The gauge port accepts a gauge or can serve as an additional full-flow outlet. For panel mounting, Type 41 regulators require one panel hole and offer fine adjustment sensitivity with a 32 TPI adjusting screw and knob. The Type 41-1 includes 1/4 NPT ports and a knob, and mounts using the center nut or threaded shoulder holes on 1.5 in (38.1 mm) centers.
Features:
- Superior regulation characteristics
- Rugged, corrosion-resistant construction
- Excellent stability and repeatability
- Self-relieving of excess downstream pressure
- Low droop at high flow
- Mounting options available
- Panel Mounted Applications
- Constant Flow Monitoring
- Corrosive Environments
- Low or Zero Flow Monitoring
- Downstream Flow
Size
2.5" X 2.5" X 5.75"
Port Sizes
1/4"
Sensitivity
1" Water Column (2.5 cm)
Pressure Ranges
0-2 psig (0-0.14 BAR)
0-10 psig (0-0.69 BAR)
0-30 psig (0-2.1 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
0-10 psig (0-0.69 BAR)
0-30 psig (0-2.1 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
Mounting Options
Pipe, Panel or Bracket
Temperature Range
0-160˚F (-18 to 71˚C)
Forward Flow Capacity
25 SCFM (700 LPM)
Maximum Supply Pressure
250 psig (17.2 BAR)
Materials of Construction
Body: Die cast aluminum with vinyl paint
Adjusting Screw: Plated steel
Trim: Plated steel, brass, acetal resin
Diaphragm: Buna-N polyester fabric
Knob: Phenolic Plastic
Spring: Music wire
Adjusting Screw: Plated steel
Trim: Plated steel, brass, acetal resin
Diaphragm: Buna-N polyester fabric
Knob: Phenolic Plastic
Spring: Music wire
Total Air Consumption @ Maximum Output
6 SCFH (2.8 LPM)
Effect of Changes in Flow on Regulated Pressure
1 psig (0.07 BAR) over flow
of 10 SCFM (0-30 psig / 0-2.1 BAR
range, 1/4 NPT, 20 psig / 1.4 BAR set
point)
of 10 SCFM (0-30 psig / 0-2.1 BAR
range, 1/4 NPT, 20 psig / 1.4 BAR set
point)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1–0.45 SCFM Typical 2.8 - 12.7 LPM
Effect of Supply Pressure Variation on Outlet Pressure
±0.35 psig
(24 mBAR)
(24 mBAR)
