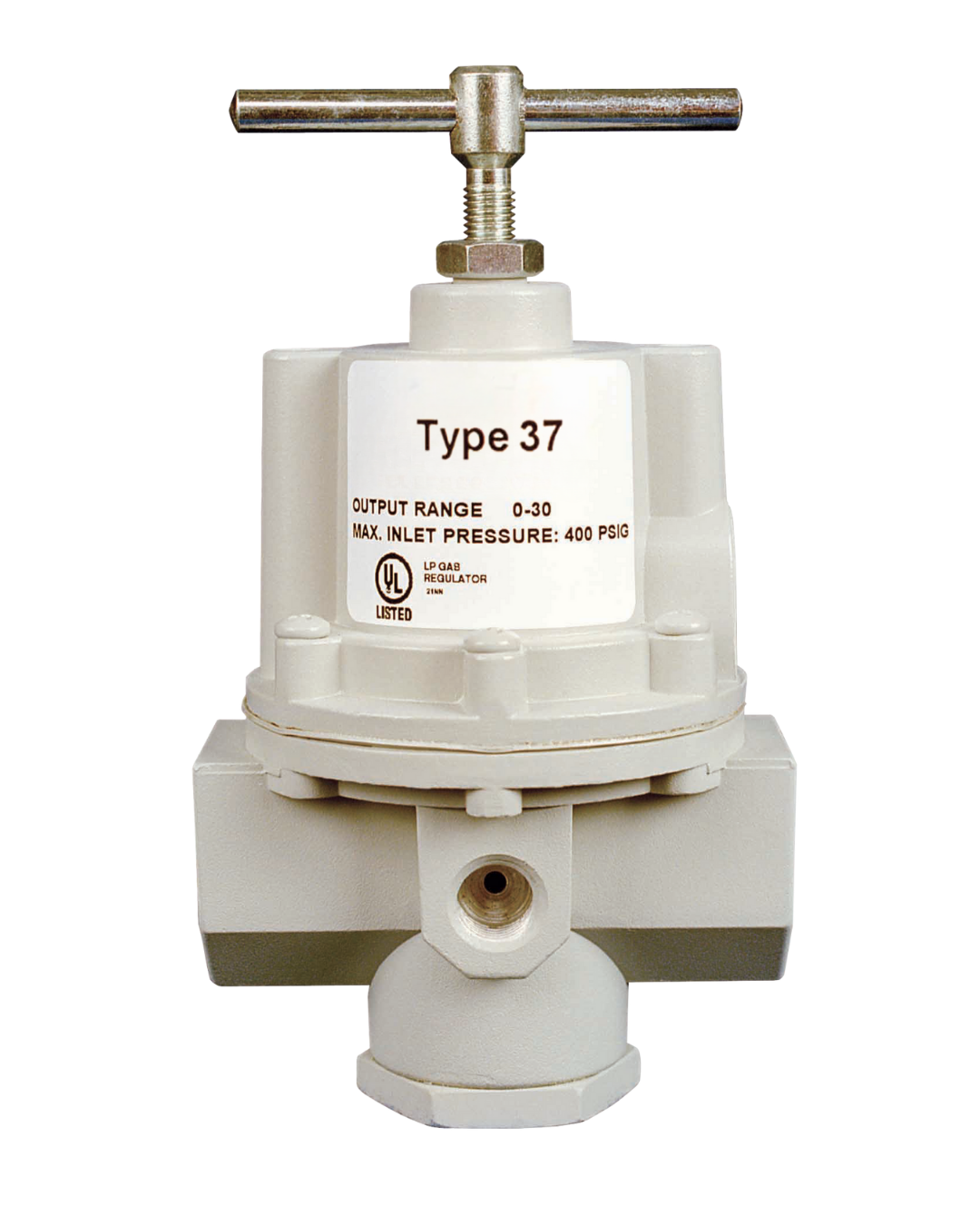

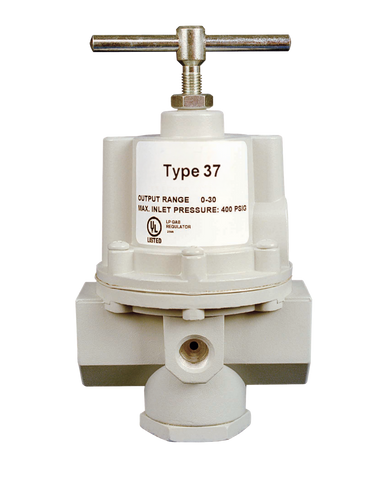

Type 37 - High Flow Pressure Regulator
The Type 37 is an economical pressure regulator designed to provide reliable performance in cost-conscious applications. With flow rates comparable to current market suppliers, it supports dependable pressure control where practical performance and value are important. The T37 is a reduced-size version of the larger T78 high-flow regulator, designed with the same balanced pintle and accuracy in a more compact package. Designed for consistent operation, the Type 37 is well suited for applications requiring a straightforward regulator solution without unnecessary complexity.
Features:
- Bubble-Tight
- Non-Relieving
- High Flow Capacity
- Enclosed Space Use
- Balanced Pintle Design
- Bellofram Rolling Diaphragm
- Temperature Range: -40°F to 200°F
- Fuel Gas
- Actuation
- Compressed Air
- Valve Positioners
- Pneumatic Controllers
Sensitivity
1" water column
Outlet Ranges
0-10 PSIG (0.07 BAR),
0-30 PSIG (0-2 BAR),
0-60 PSIG (0-4 BAR),
0-125 PSIG (0-8 BAR)
Port Size (NPT)
1/2" and 3/4"
Shopify Table View
Diaphragm Material
Nitrile Elastomer with Polyester Fabric
Max. Inlet Pressure
400 PSIG (28 BAR)
Materials of Construction
Zinc, Aluminum, Plated Steel, Buna-N, Brass
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
