Type 3410- T3410 Digital Circuit-Card Regulators

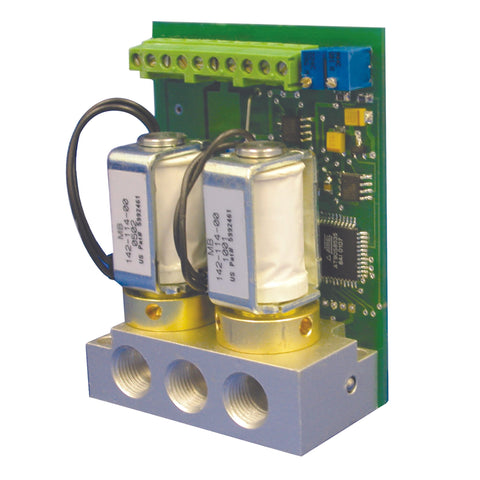

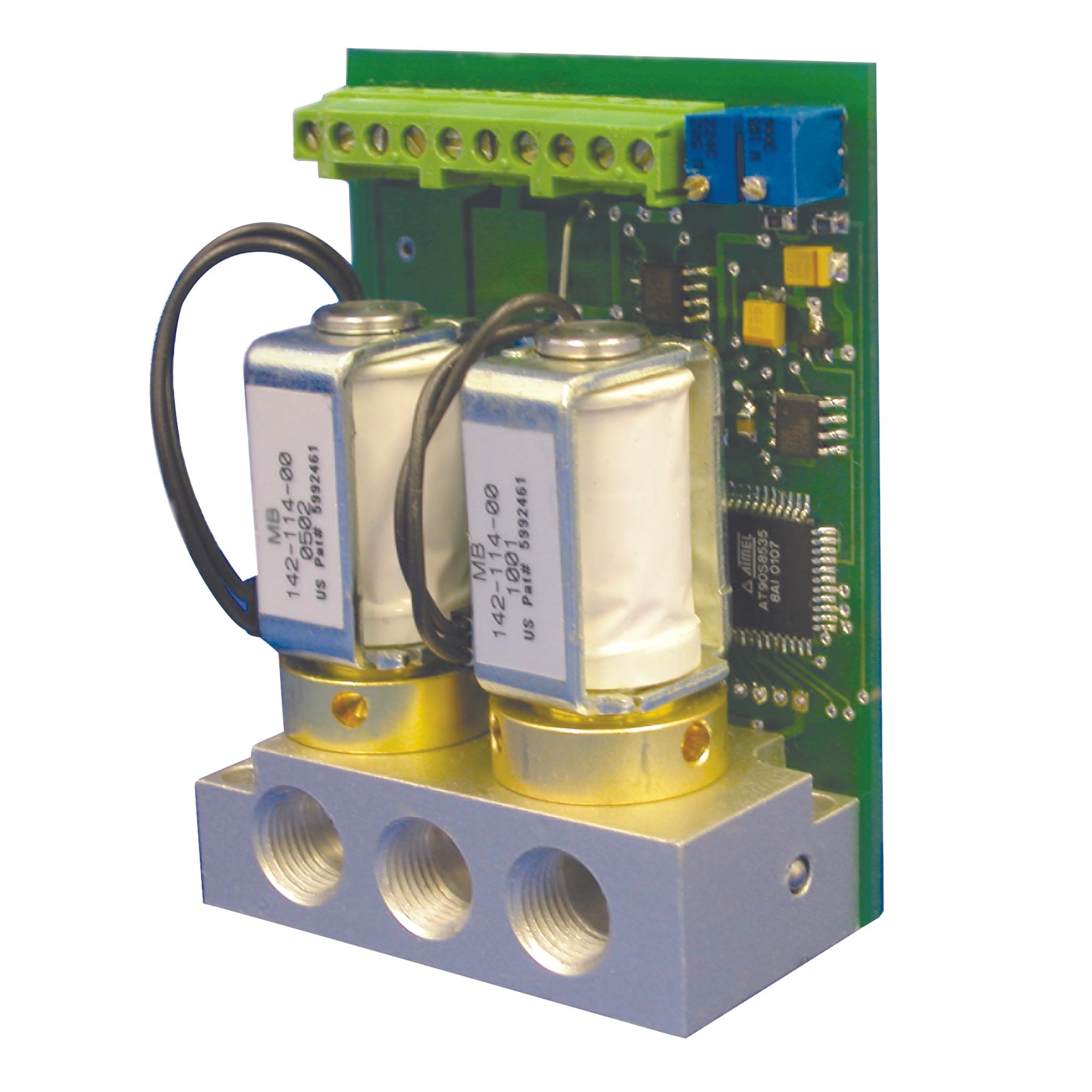

The compact Type 3410 (one-loop) and 3420 (two-loop) Circuit-Card Pressure Regulators are perfect for size-conscious OEM’s, without sacrificing any of the high-end performance normally associated with full-size I/P’s. The T3400 can be controlled digitally (via the serial interface) or with industry standard analog control signals (0-10V or 4-20mA). Industry-standard analog monitor output signals (0-10V or 4-20mA optional) are available for user-monitoring of actual output pressure.
Features:- Small Footprint
- Serial Interface
- Digital or Analog Inputs
- Analog Monitor Output
- Single Loop and Dual Loop Control
- HVAC
- Medical Devices
- Low Flow Process
- Vacuum Control
E/P Supply Requirements
24 +/- 10% VDC or VAC (175-260mA)
Voltage Input Ranges (DC)
0-10, 0-5
Current Input Ranges (mA)
4-20, 0-20
Impedance Current (Ohms)
250
Logic Output
NO
Analog Monitor Output
YES
Internal Feedback (closed loop)
YES
External Feedback
NO
Minimum Supply Pressure (psi)
100% of output
Maximum Supply Pressure (psi)
30, 45 psi
Output Pressure Range(s) (psi)
0-15
Flow Rate (scfm)
0.4 (0.8 optional)
Measured Supply
25
Measured Outlet
15
Exhaust Capacity (scfm) @ 5 psid
0.4 (0.8 optional)
Exhaust Capture
YES
Air Consumption
Negligible
Accuracy (% of span, typ.)
1
Operating Temp (⁰C)
0⁰ - 60⁰
Output Gauge Port
no
Width x Depth x Height (in.)
3.6" x 2.3" x 1.8"
Supply Port
1/8" NPT
Output Port
1/8" NPT
Exhaust Port
1/8" NPT
Electrical Port (STD)
Terminal Block
Electrical Connections (option)
Removeable Terminal Block
Mounting Options
Panel
Mounting Orientation Insensitivity
Excellent
External Span/Zero Adjustment
YES
Reverse Acting
YES
Impedance Voltage (Ohms)
15K
Filter Output Pressure Ranges
0-2 PSIG,
0-10 PSIG,
0-30 PSIG,
0-60 PSIG,
0-100 PSIG,
0-120 PSIG,
0-150 PSIG,
0-200 PSIG,
0-600 PSIG
Filter Input Signal
4-20 mA,
0-10 VDC
Filter Port Size
1/8" NPT
Filter Maximum Supply Pressure
100 PSIG,
150 PSIG,
600 PSIG
Filter Maximum Accuracy
0.50%
