Type 3212- T3212 Analog Weatherproof Regulators

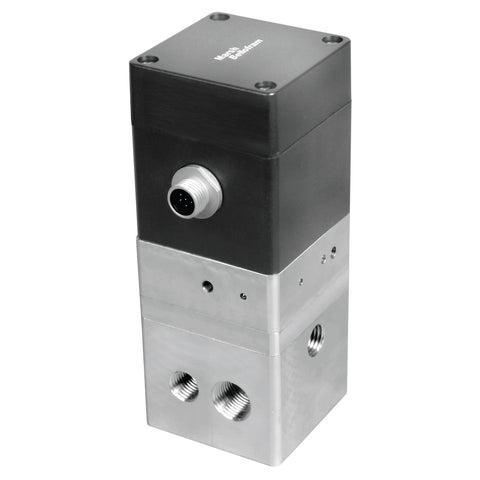

The Bellofram Precision Controls Type 3212 is a single-loop analog weatherproof pressure controller with an integrated pneumatic volume booster for higher-flow applications. Its non-bleeding twin-solenoid design accepts 4-20 mA or 0-10 VDC command signals, monitors actual outlet pressure with an internal sensor, and provides closed-loop accuracy of approximately ±0.5%. The integrated booster enables flow capability up to 60 SCFM, with output-pressure configurations available up to 150 psi. The Type 3212 is designed for web tensioning, automotive painting, tire manufacturing, and other high-flow process-control applications.
Features:
- Closed Loop Technology
- Integrated Air Volume Booster
- Current/Voltage Command and Monitor Signals
- Compact Unit with Flows up to 60 SCFM
- Web Tensioning
- Automotive Painting
- Tire Manufacturing
- High Flow Process Applications
E/P Supply Requirements
15-24 VDC (80-325 mA)
Voltage Input Ranges (DC)
0-10
Current Input Ranges (mA)
4-20
Impedance Current (Ohms)
250
Logic Output
YES
Analog Monitor Output
YES
Internal Feedback (closed loop)
YES
External Feedback
OPTION
Minimum Supply Pressure (psi)
100% of output
Maximum Supply Pressure (psi)
110% of output
Output Pressure Range(s) (psi)
0-5
Flow Rate (scfm)
1.2
Exhaust Capacity (scfm) @ 5 psid
10
Exhaust Capture
YES
Air Consumption
Negligible
Repeatability (% of span, typ.)
0.2
Independent Linearity (% of span, typ.)
0.2
Hysterisis (% of span, typ.)
0.5
Accuracy (% of span, typ.)
0.5
Operating Temp (⁰C)
0⁰ - 60⁰
Output Gauge Port
no
Width x Depth x Height (in.)
2.3" x 2.3" x 5" max.
Supply Port
1/4" NPT
Output Port
1/4" NPT
Exhaust Port
No. 10-32 UNF-2B
Electrical Port (STD)
micro style 6 pin micro
Mounting Options
Pipe (in line)
Mounting Orientation Insensitivity
Excellent
External Span/Zero Adjustment
YES
Reverse Acting
OPTION
Impedance Voltage (Ohms)
10 K
Filter Output Pressure Ranges
0-10 PSIG,
0-30 PSIG,
0-100 PSIG,
0-150 PSIG
Filter Input Signal
4-20 mA,
0-10 VDC
Filter Port Size
1/4" NPT,
3/8" NPT
Filter Maximum Supply Pressure
100 PSIG,
150 PSIG
Filter Maximum Accuracy
0.50%
