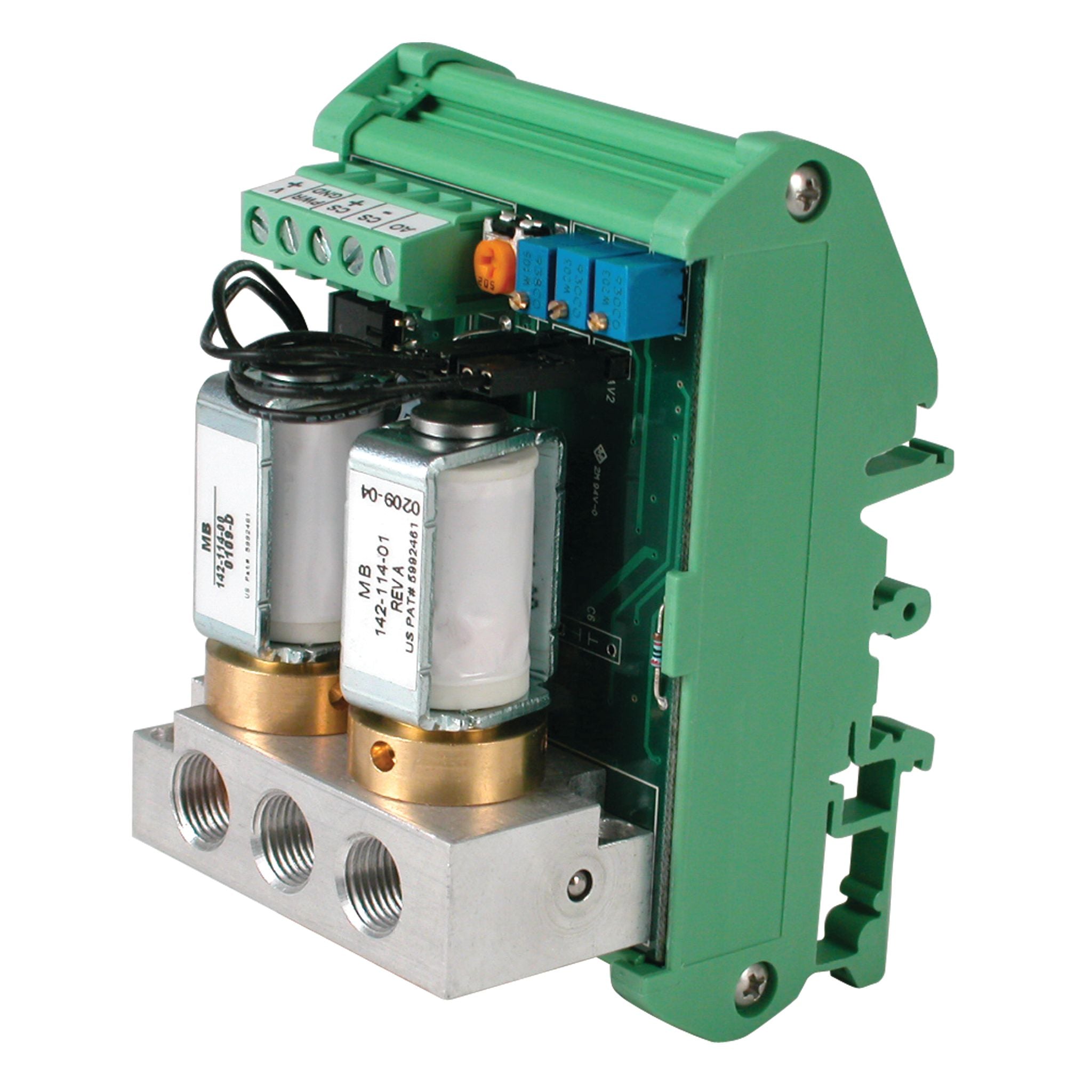

Type 3111- T3111 Analog Circuit-Card Regulators
The T3111 Compact Analog Pressure Controller is an economical version of the T3100 with no
remote feedback or logic output capabilities. Output pressure is limited to 150 psig maximum.
Jumper selections include AC/DC power and several control signal ranges. Manual output pressure
adjustment and differential control signals are available. Overall product dimensions are identical
to Type 3110.
Features:
- Mounts on panel, DIN rail, or directly to multi-station manifold
- Small Footprint
- Analog Monitor Output (0-5V)
- Economical
- Manual override for out span adjustments
- HVAC
- Medical Devices
- Low Flow Process
- Vacuum Control
Output Port
1/8" NPT
Supply Port
1/8" NPT
Exhaust Port
1/8" NPT
Logic Output
NO
Reverse Acting
OPTION
Air Consumption
Negligible
Exhaust Capture
YES
Port Size
1/8" NPT
Flow Rate (scfm)
1.2
Mounting Options
DIN Tray
External Feedback
NO
Output Gauge Port
no
Input Signal
4-20 mA,
0-10 VDC,
0-5 VDC,
0-10 VDC
Analog Monitor Output
YES
Electrical Port (STD)
Terminal Block
Operating Temp (⁰C)
0⁰ - 60⁰
E/P Supply Requirements
24 VDC or 24 VAC
Maximum Accuracy
0.50%
Impedance Current (Ohms)
250
Impedance Voltage (Ohms)
2K -100K
Current Input Ranges (mA)
0-20
Voltage Input Ranges (DC)
0-5, 0-10, 0-15
Accuracy (% of span, typ.)
0.5
Hysterisis (% of span, typ.)
0.5
Width x Depth x Height (in.)
2.2" x 2.0" x 2.8"
External Span/Zero Adjustment
YES
Output Pressure Ranges
0-10 PSIG,
0-30 PSIG,
0-60 PSIG,
0-100 PSIG,
0-120 PSIG,
0-150 PSIG
Maximum Supply Pressure (psi)
110% of output
Minimum Supply Pressure (psi)
100% of output
Maximum Supply Pressure
150 PSIG
Output Pressure Range(s) (psi)
0-15
Internal Feedback (closed loop)
YES
Repeatability (% of span, typ.)
0.2
Exhaust Capacity (scfm) @ 5 psid
1.2
Mounting Orientation Insensitivity
Excellent
Independent Linearity (% of span, typ.)
0.2
