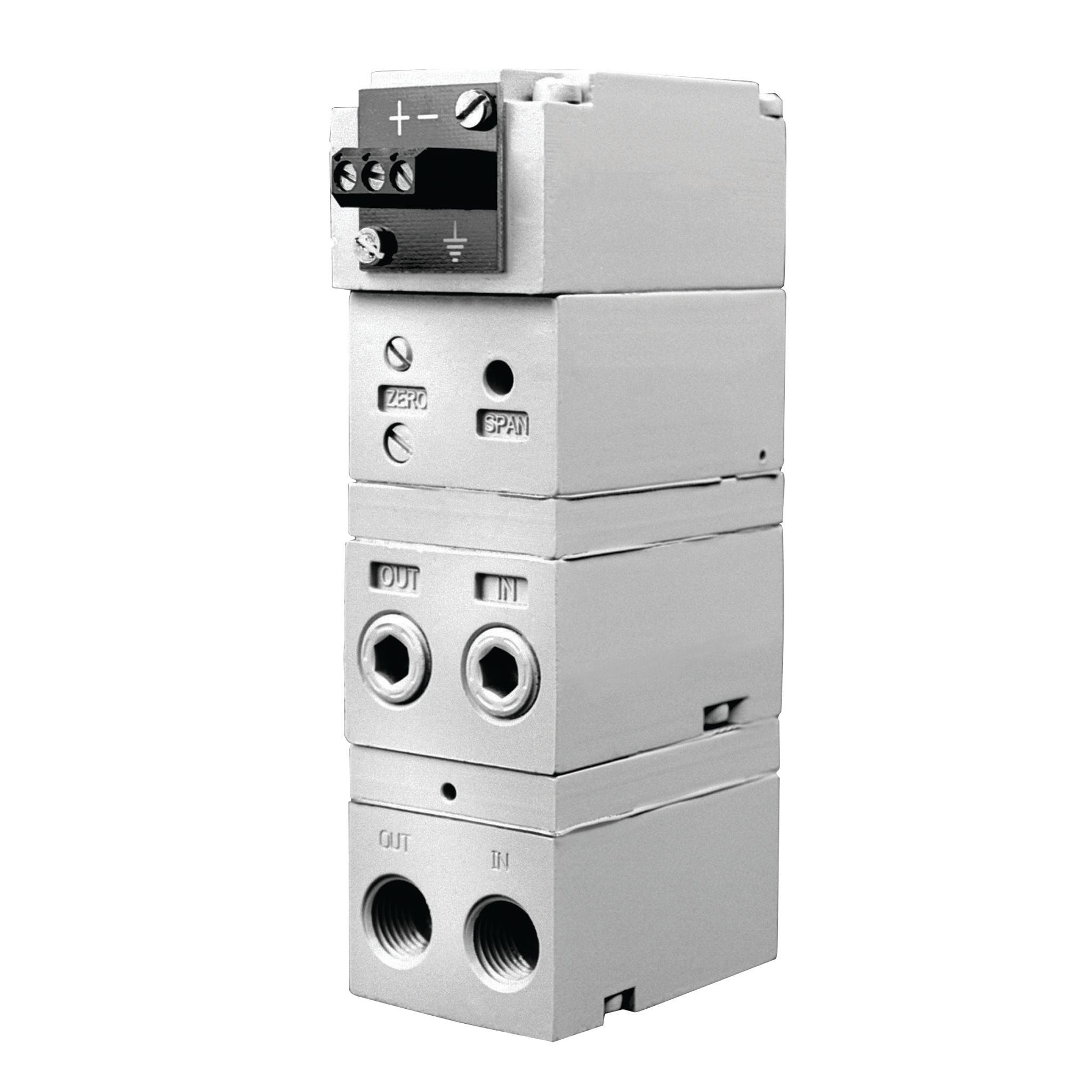

Type 1500 - T1500 NEMA 4X
The T1500 is a new series of electropneumatic transducers that convert an electrical signal to a proportional pressure output. It provides precision electropneumatic control to actuators, valves, positioners, final control elements and is ideally used for high-flow control devices. The Type 1500's compact size and accessibility to ports and adjustments allow the unit to be installed in spaceconstrained locations or in a manifold for multi-device control. DIN rail and manifold assemblies are available in kits that provide three, five or ten mounting points. An integral pneumatic volume booster is included in the Type 1500 design to provide high flow capacity. (See specifications for flow data.)
Features:
- Electrical Connections: Conduit 1⁄2″ NPT or BSPT, Terminal Block, Hirschmann® Connectors (DIN 43 650-A)
- Supply and Output Ports on Front and Back of Unit
- Low Air Consumption
- External Zero and Span Adjustments
- Field Accessible Orifice
- Electrical Conduit Connection Meets CE Requirements
- Intrinsically Safe Versions (FM, CSA, ATEX Approvals)
- NEMA 4X Version (FM, CSA Approvals) Excludes Terminal Block
- Valve Actuators
- Valve Positioners
- HVAC Systems
- Pulp & Paper Handling
- Automation Systems
- Machining Centers
- Material Handling
- Robotics Control
- Liquid & Gas Processing
Type
Type 1500 NEMA 4X
Weight
1.6 lbs
Output Port
1/4" NPT
Supply Port
1/4" NPT
Exhaust Port
No
Logic Output
No
Product Title
Type 1500 NEMA 4X
Air Consumption
3
Exhaust Capture
No
Measured Outlet
15
Measured Supply
120
Flow Rate (scfm)
6.5
Mounting Options
Inline, pipe, panel, DIN-rail, manifold
External Feedback
No
Output Gauge Port
Yes
Analog Monitor Output
No
Electrical Port (STD)
1/2" NPT
Operating Temp (⁰C)
-28º to 66º
E/P Supply Requirements
Loop-powered
Current Input Ranges (mA)
20-Apr
Voltage Input Ranges (DC)
4-20mA DC
Accuracy (% of span, typ.)
0.75
Hysterisis (% of span, typ.)
<0.75
Width x Depth x Height (in.)
1.5" – 3.2" – 3.7"
External Span/Zero Adjustment
Yes
Maximum Supply Pressure (psi)
120
Minimum Supply Pressure (psi)
5 PSI above max
Electrical Connections (option)
DIN 43 650-A, Term Blk, 1/2" BSPT
Internal Feedback (closed loop)
No
Repeatability (% of span, typ.)
<0.5
Exhaust Capacity (scfm) @ 5 psid
>1.0
Mounting Orientation Insensitivity
Some
Independent Linearity (% of span, typ.)
<0.75
