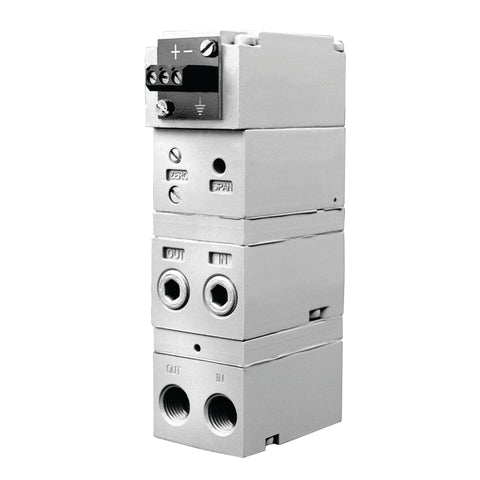

Type 1500 - T1500 Indoor Use/General Purpose - Positioner Control Valve
The Bellofram Precision Controls Type 1500 is a compact 4-20 mA electro-pneumatic transducer designed for proportional pressure control of valves, positioners, actuators, and other high-flow control devices. It converts a 4-20 mA electrical input into a pneumatic output range up to 0-30 PSIG, with flow capacity up to 6.5 SCFM and 0.75% typical accuracy. Inline, pipe, panel, DIN-rail, and manifold mounting options make the T1500 well suited to space-constrained machinery and multi-device control systems in machining, robotics, material handling, and liquid or gas processing.
Features:
- 4-20 mA electrical input for proportional pneumatic control
- Pneumatic output range up to 0-30 PSIG
- Flow capacity up to 6.5 SCFM
- 0.75% of span typical accuracy
- Maximum supply pressure up to 120 psi
- Inline, pipe, panel, DIN-rail, and manifold mounting options
- Compact configuration for valves, positioners, actuators, and other final control elements
- Machining Centers
- Material Handling
- Robotics Control
- Liquid & Gas Processing
Output Port
1/4" NPT
Supply Port
1/4" NPT
Exhaust Port
No
Logic Output
No
Air Consumption
3
Exhaust Capture
No
Measured Outlet
15
Measured Supply
120
Flow Rate (scfm)
6.5
Mounting Options
Inline, pipe, panel, DIN-rail, manifold
External Feedback
No
Output Gauge Port
Yes
Input Signal
4-20 mA
Analog Monitor Output
No
Electrical Port (STD)
1/2" NPT
Operating Temp (⁰C)
-28º to 66º
E/P Supply Requirements
Loop-powered
Maximum Accuracy
1%
Current Input Ranges (mA)
4-20 mA
Voltage Input Ranges (DC)
n/a
Accuracy (% of span, typ.)
0.75
Hysterisis (% of span, typ.)
<0.75
Width x Depth x Height (in.)
1.5" – 3.2" – 3.7"
External Span/Zero Adjustment
Yes
Output Pressure Ranges
0-30 PSIG
Maximum Supply Pressure (psi)
120
Minimum Supply Pressure (psi)
5 PSI above max
Maximum Supply Pressure
100 PSIG
Electrical Connections (option)
DIN 43 650-A, Term Blk, 1/2" BSPT
Internal Feedback (closed loop)
No
Repeatability (% of span, typ.)
<0.5
Exhaust Capacity (scfm) @ 5 psid
>1.0
Mounting Orientation Insensitivity
Some
Independent Linearity (% of span, typ.)
<0.75
