Type 110- T110 Precision Regulator

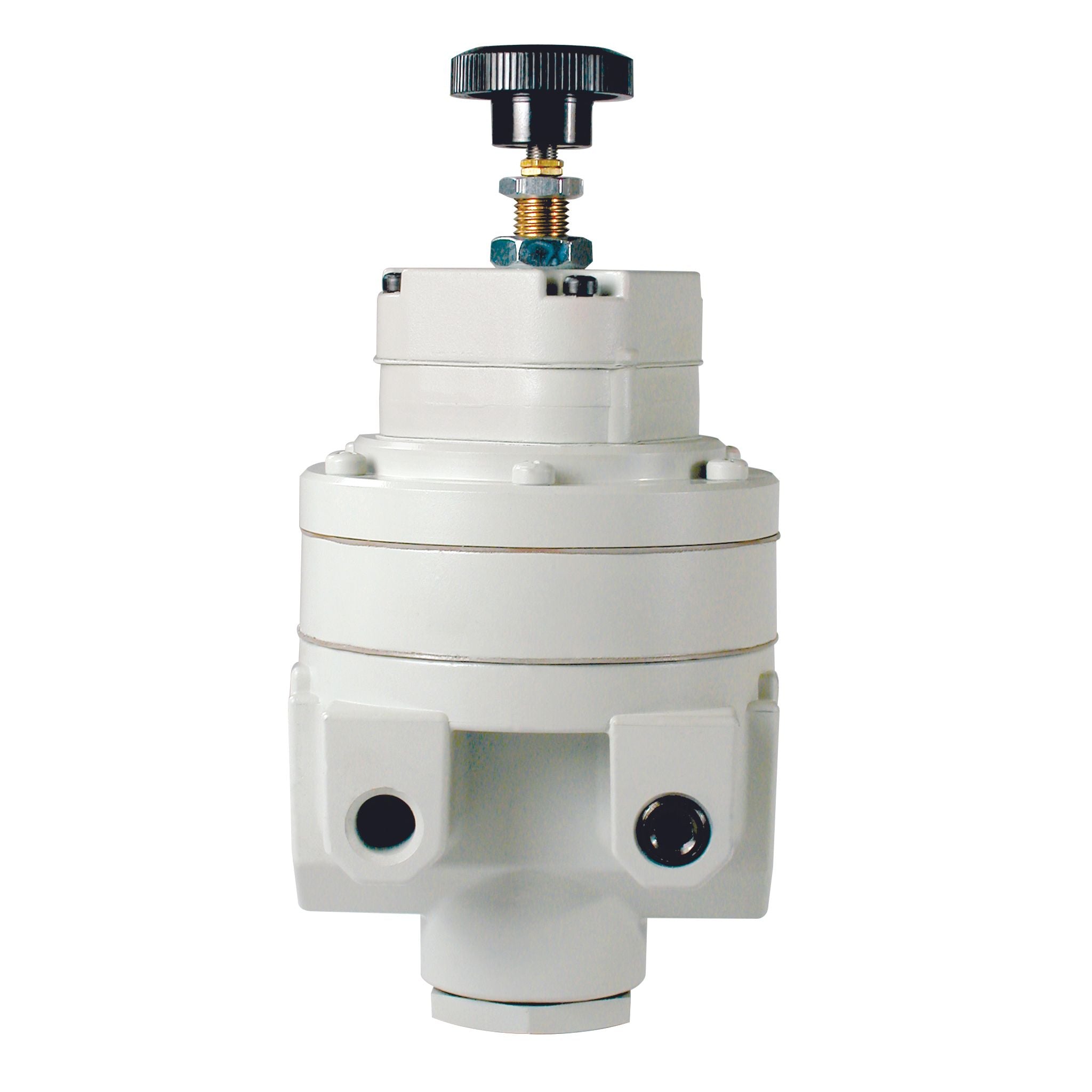

The Type 110 Large Forward and Exhaust Flow Air Pressure Regulator combines the proven technology of the Type 10 regulator with the large pneumatic booster of the Type 79 Relay.
Features:- Highly Accurate Pressure Regulation
- Large Port Sizes Available: 3/8, 1/2, 3/4 and 1 NPT (BSPP and BSPT also Available)
- Adjustment Stem Locking Capability
- High Forward Flow Capacity – 150+ SCFM
- High Exhaust Capacity
- Balanced Supply Valve
- Low Sensitivity to Supply Pressure Variations
- Low Sensitivity to Flow Variations
- Valve Operators
- Air Hoists
- Web Tensioning
- Roll Loading
- Large Cylinder Loading
- Air Brakes
- Force Balance Hoists
- Gate Actuators
Size
3.6" X 3.6" X 7.4"
Maximum Supply Pressure
250 PSIG / 17.2 BAR
Pressure Ranges
2-25 PSIG / 0.14-1.7 BAR
2-50 PSIG / 0.14-3.5 BAR
2-110 PSIG / 0.14-7.6 BAR
2-50 PSIG / 0.14-3.5 BAR
2-110 PSIG / 0.14-7.6 BAR
Port Sizes
3/8, 1/2, 3/4, 1
Sensitivity
1/4" / 6.4 mm of water column
Forward Flow Capacity
110 SCFM+ / 3105 SLPM
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
30 scfm / 847 slpm
Temperature Range
-20 to 160˚F
-29 to 71˚C
-29 to 71˚C
Total Air Consumption @ Maximum Output
14 scfh / 6.6 slpm
Materials of Construction
Body, bonnet and housing Die Cast Zinc Alloy
Capsule and adjustable screw Stainless Steel
Spacer Aluminum
Diaphragm Nitrile Elastomer and Polyester Fabric
Trim Stainless Steel, Brass, Plated Steel, Acetal
Knob Phenolic Plastic
Capsule and adjustable screw Stainless Steel
Spacer Aluminum
Diaphragm Nitrile Elastomer and Polyester Fabric
Trim Stainless Steel, Brass, Plated Steel, Acetal
Knob Phenolic Plastic
Effect of Supply Pressure Variation on Outlet Pressure
0.01 psig / 0.6 mBAR change in output for a
25 psig/1.7 BAR change in supply pressure
25 psig/1.7 BAR change in supply pressure
Effect of Changes in Flow on Regulated Pressure
3 PSIG over change of 20 SCFM at a 20 PSIG output pressure
Mounting Options
Pipe or Panel
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
