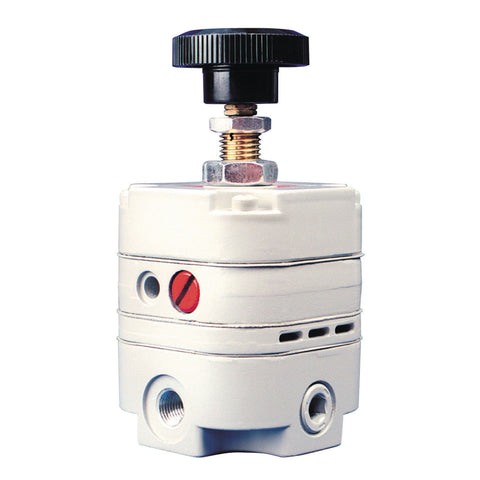

Type 10- T10 Precision Regulator
The Marsh Bellofram Type 10 Air Pressure Regulator is designed to control output pressure with accuracy of 0.1% and high-repeatability, with very low sensitivity to changes in supply pressure, ambient temperature and flow.
Features:- Highly Accurate Pressure Regulation to 0.1%
- Start-up Stability, Allowing Regulated Pressure to Return to Output Setting
- High-gain Pneumatic Servo Amplifier Regulates Wide Fluctuations in Flow
- Automatic High Downstream Relief Capacity
- Especially Good Performance from Dead End to 12 SCFM
- Locking Capability
- Temperature Stability
- Units may be installed in any position and panel mounted or supported by inline plumbing
- Available variations to meet particular requirements, such as high-relief, low-range and motorized configurations
- Pipe and Vessel Air Pressure Monitoring
- Industrial Processes
- HVAC, Remote Pressure Control Ventilation Systems
- Electro-pneumatic Control
- Inspection Procedures
- Control and Analysis Instrumentation
- Medical Equipment Actuation
- Gas Mixing
- Valve Operation and Gate Actuation
- Positioned Signaling
- Calibration Stands
- Air Gauging
- Cylinder Loading
- Force Balance Hoists
- Disc and Shoe Air Braking
- Clamp Units
- Web Tensioning
- Roll Loading
- Press Units
Size
2.06" X 2.06" X 4.26"
Maximum Supply Pressure
150 psig / 10.3 BAR
Pressure Ranges
2-25, 2-60, 2-120 psig
0.14–1.7, 0.14–4.1,
0.14–8.3 BAR
0.14–1.7, 0.14–4.1,
0.14–8.3 BAR
Port Sizes
1/8, 1/4, 3/8
Sensitivity
1/8" / 3.2mm
of water
of water
Forward Flow Capacity
14 scfm / 396 LPM
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
2 scfm / 56 LPM
Output Pressure Ranges
2-25 psig, 2-60 psig, 2-120 psig
Temperature Range
-20 to 160˚F
-29 to 71˚C
-29 to 71˚C
Total Air Consumption @ Maximum Output
8 SCFH
Materials of Construction
Body: Diecast zinc alloy with
vinyl paint
Capsule and Adjusting Screw:
Stainless steel
Trim: Stainless steel, brass,
plated steel, acetal resin
Diaphragm: Buna-N elastomer
and polyester fabric
Knob: Phenolic plastic
vinyl paint
Capsule and Adjusting Screw:
Stainless steel
Trim: Stainless steel, brass,
plated steel, acetal resin
Diaphragm: Buna-N elastomer
and polyester fabric
Knob: Phenolic plastic
Effect of Supply Pressure Variation on Outlet Pressure
0.005 psig /
0.3 mBAR
per 25 psig /
1.7 BAR change
0.3 mBAR
per 25 psig /
1.7 BAR change
Effect of Changes in Flow on Regulated Pressure
0.25 psig over change of
10 SCFM
(2-25 psig range, and 10 psig
set point)
10 SCFM
(2-25 psig range, and 10 psig
set point)
Mounting Options
Pipe or Panel
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
