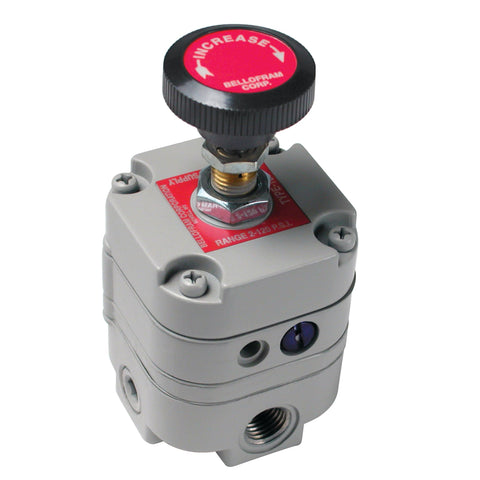

Type 10- T10 HR Precision Regulator
The Bellofram Precision Controls Type 10 HR is a high-relief precision pressure regulator designed for accurate pneumatic control with faster downstream blowdown than the standard Type 10. It provides pressure regulation accuracy to 0.1%, forward flow up to 14 SCFM, and 10 SCFM exhaust capacity at 5 psig above setpoint. Output pressure extends to 120 psig with maximum supply pressure of 150 psig. The Type 10 HR is suited to cylinder return strokes, air hoists, web tensioning, loading, braking, clamping, and other applications requiring both precise regulation and high relief capacity.
Features:
- Highly Accurate Pressure Regulation to 0.1%
- Start-up Stability, Allowing Regulated Pressure to Return to Output Setting
- High-gain Pneumatic Servo Amplifier Regulates Wide Fluctuations in Flow
- Automatic High Downstream Relief Capacity
- Especially Good Performance from Dead End to 12 SCFM
- Locking Capability
- Temperature Stability
- Units may be installed in any position and panel mounted or supported by inline plumbing
- Available variations to meet particular requirements, such as high-relief, low-range and motorized configurations
- Pipe and Vessel Air Pressure Monitoring
- Industrial Processes
- HVAC, Remote Pressure Control Ventilation Systems
- Electro-pneumatic Control
- Inspection Procedures
- Control and Analysis Instrumentation
- Medical Equipment Actuation
- Gas Mixing
- Valve Operation and Gate Actuation
- Positioned Signaling
- Calibration Stands
- Air Gauging
- Cylinder Loading
- Force Balance Hoists
- Disc and Shoe Air Braking
- Clamp Units
- Web Tensioning
- Roll Loading
- Press Units
Size
2.06" X 2.06" X 4.26"
Maximum Supply Pressure
150 psig / 10.3 BAR
Pressure Ranges
2-120 psig
0.14–8.3 BAR
0.14–8.3 BAR
Port Sizes
1/8, 1/4, 3/8
Sensitivity
1/8" / 3.2mm
of water
of water
Forward Flow Capacity
14 scfm / 396 LPM
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
10 scfm / 283 LPM
Output Pressure Ranges
2-120 psig
Temperature Range
-20 to 160˚F
-29 to 71˚C
-29 to 71˚C
Total Air Consumption @ Maximum Output
8 SCFH
Materials of Construction
Body: Diecast zinc alloy with
vinyl paint
Capsule and Adjusting Screw:
Stainless steel
Trim: Stainless steel, brass,
plated steel, acetal resin
Diaphragm: Buna-N elastomer
and polyester fabric
Knob: Phenolic plastic
vinyl paint
Capsule and Adjusting Screw:
Stainless steel
Trim: Stainless steel, brass,
plated steel, acetal resin
Diaphragm: Buna-N elastomer
and polyester fabric
Knob: Phenolic plastic
Effect of Supply Pressure Variation on Outlet Pressure
0.005 psig /
0.3 mBAR
per 25 psig /
1.7 BAR change
0.3 mBAR
per 25 psig /
1.7 BAR change
Effect of Changes in Flow on Regulated Pressure
0.25 psig over change of
10 SCFM
(2-25 psig range, and 10 psig
set point)
10 SCFM
(2-25 psig range, and 10 psig
set point)
Mounting Options
Pipe or Panel
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
