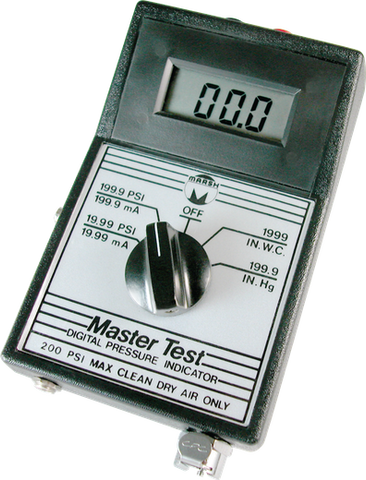

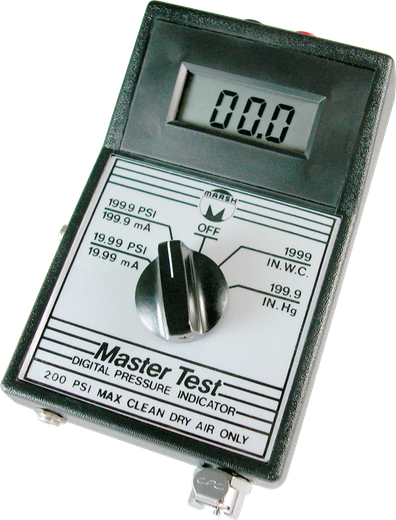

Hand Held Digital Pressure Indicator
The Hand Held Digital Pressure Indicator and Calibrator is designed for calibrating DP cells, I/P transducers, and P/I transducers. It provides a portable solution for testing installed instruments and transmitters, verifying valve and switch operation, checking instrument settings, and detecting system leaks.
Compact and easy to use, the unit supports a wide range of testing and maintenance applications where accurate pressure indication and calibration are required.
- LCD digital readout
- Lightweight, portable package
- Converts pressure input to a digital display
- State-of-the-art semiconductor technology
- High-accuracy pressure indication and calibration
- Calibrating DP cells, I/P transducers, and P/I transducers
- Testing installed instruments and transmitters
- Verifying valve and switch operation
- Checking instrument settings
- Detecting system leaks
Pneumatic Range
-14.7 to 200 psig, with corresponding inches of water column and inches of mercury ranges.
Wetted Materials
Brass fitting and silicone wafer diaphragm. Suitable for clean, dry instrument air or clean, non-conductive fluids.
Pressure Fitting
5/16" quick-connect tube fitting standard, supplied with a mating nickel-plated brass locking quick connector and 8" of 1/4" O.D. plastic tubing.
Display
3-1/2 digit LCD with 1/2" high black numerals on a light background. Includes polarity and low battery indicators.
Accuracy
±0.5% of reading ±1 count. Unit must be zeroed at barometric pressure.
Calibration Temperature Range
50°F to 90°F
Operating Temperature Range
30°F to 130°F
Temperature Effect
±0.01% per °F outside the calibration range
Power
Internal 9-volt transistor battery.
Case Size
3.60" wide x 5-3/4" long x 1.92" high; ABS plastic construction.
Includes
Carrying case, battery charger, 8" plastic hose, quick-connect fitting, and technical manual.
Ordering Information
4-DP Series Master Test Digital Pressure Indicator
| Pressure Range | Part Number |
|---|---|
| -14.7 to 50 psi | 4-DPP-20050-BBC |
| -14.7 to 60 psi | 4-DP-20060-B3 |
| -14.7 to 200 psi | 4-DPP-20200-BBC |
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
