Type 5000 - T5000 NEMA 4X

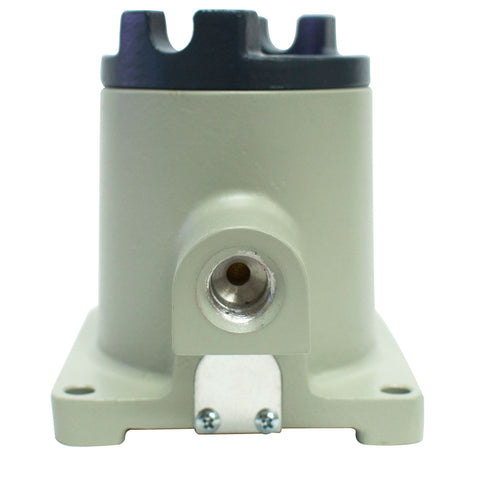

The Bellofram Precision Controls Type 5000 is a compact NEMA 4X two-wire pressure transmitter that converts pneumatic pressure into a precise electrical current output for industrial monitoring and control. It is available with 4-20 mA or 10-50 mA output and uses a temperature-compensated piezoresistive sensor for gauge-pressure measurement of non-corrosive liquids and gases. The Type 5000 provides 0.1% typical accuracy, accessible zero and span adjustments, a 1/4 NPT pressure port, and a 1/2 NPT conduit connection. Its rugged design resists ordinary industrial vibration and can be mounted in multiple orientations.
Features:
- 0.1% accuracy typical
- Two-wire 4-20 mA or 10-50 mA electrical output
- Temperature-compensated piezoresistive pressure sensor
- Suitable for gauge-pressure measurement of non-corrosive liquids and gases
- 1/4 NPT pressure port and 1/2 NPT conduit port
- Accessible zero and span adjustments for field calibration
- Mounts at multiple orientations with strong vibration resistance
- NEMA 4X housing approved for explosion-proof service
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
