Type 2000 - T2000 Intrinsically Safe

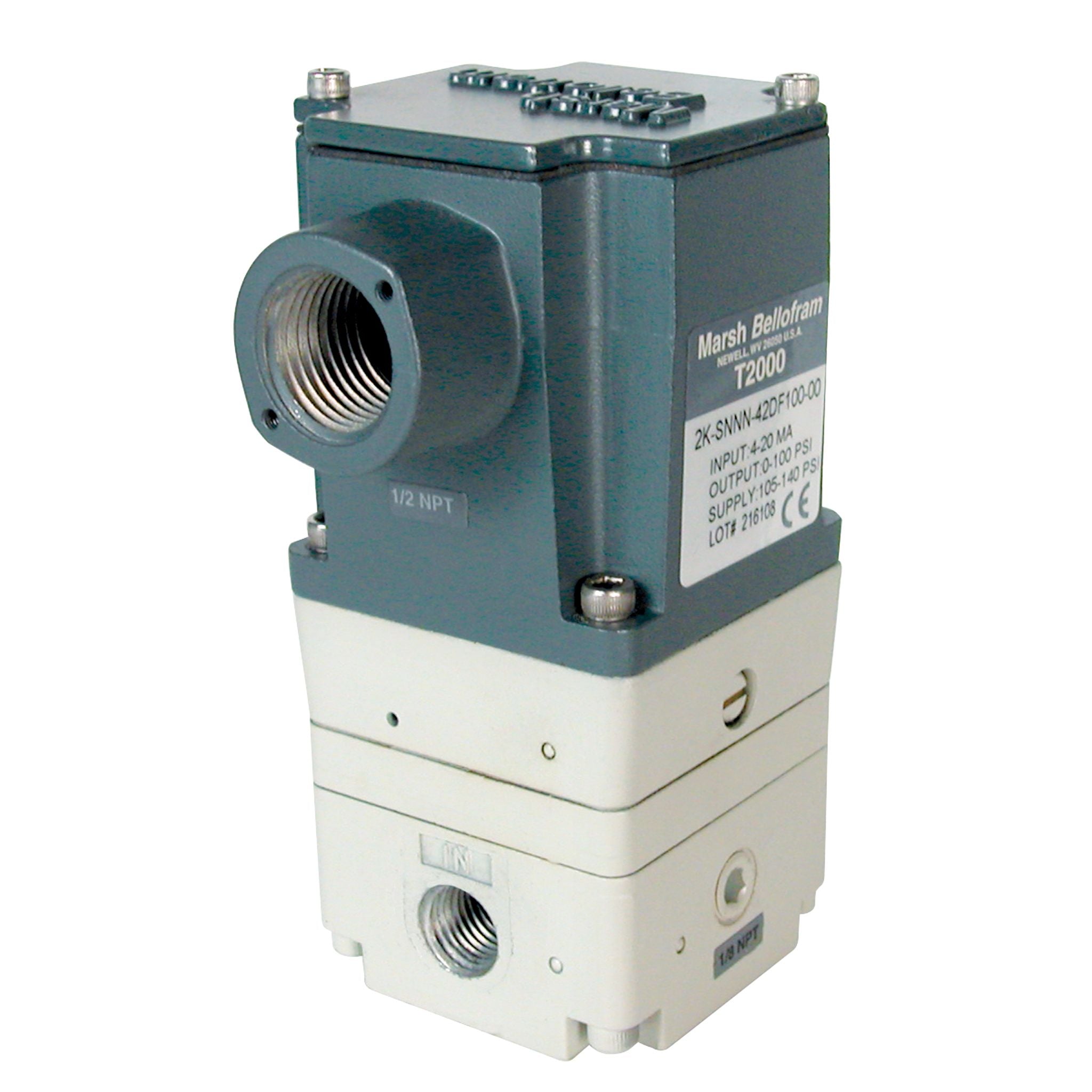

The Bellofram Precision Controls Type 2000 Intrinsically Safe Transducer is a high-accuracy I/P and E/P electro-pneumatic transducer for applications requiring intrinsically safe equipment. It converts a 4-20 mA or voltage control signal into precise, proportional pneumatic pressure using closed-loop pressure feedback and a hermetically sealed piezoceramic actuator. Available configurations support zero-based pressure ranges up to 120 PSIG, flow up to 21 SCFM, and FM/CSA or ATEX intrinsic-safety approvals. Typical applications include valve actuators, valve positioners, dampers and louvers, pneumatic controllers, air cylinders, relays, clutches, and brakes.
Features:
- ±0.1% of full-scale output accuracy typical (±0.25% guaranteed), including hysteresis, dead band, and repeatability
- Switch-selectable 4–20 mA current input or 0–5, 1–5, 1–9, 1–10, and 0–10 VDC input ranges
- Pneumatic output ranges available up to 120 PSIG with flow up to 21 SCFM
- Closed-loop pressure feedback helps minimize the effects of vibration, temperature, supply-pressure changes, and mounting orientation
- Patented hermetically sealed piezoceramic dimorph with isolated electronics
- High immunity to EMI/RFI for dependable industrial control
- Pipe, panel, bracket, valve, DIN-rail, and manifold mounting options
- Intrinsically safe Type 4X configurations available with FM/CSA or ATEX approvals
- Valve Actuators
- Louver and Damper Actuators
- Valve Positioners
- Relays
- Clutches and Brakes
- Controllers
- Air Cylinders
Output Port
1/4" NPT
Supply Port
1/4" NPT
Exhaust Port
Option
Logic Output
NO
Air Consumption
4
Exhaust Capture
option
Measured Outlet
60
Measured Supply
140
Flow Rate (scfm)
21
Mounting Options
Pipe, Panel, Bracket, Valve, DIN-rail, Manifold
External Feedback
NO
Output Gauge Port
YES
Analog Monitor Output
NO
Electrical Port (STD)
1/2" NPT
Operating Temp (⁰C)
-28
E/P Supply Requirements
5-28 VDC
Current Input Ranges (mA)
4-20 mA
Voltage Input Ranges (DC)
0-5, 1-5, 1-9, 1-10, 0-10 VDC
Accuracy (% of span, typ.)
0.1
Hysterisis (% of span, typ.)
0.1
Width x Depth x Height (in.)
2.3" X 2.9" X 4.9"
External Span/Zero Adjustment
NO
Maximum Supply Pressure (psi)
100
Minimum Supply Pressure (psi)
5 psi above output
Electrical Connections (option)
DIN 43 650-A Terminal Block
Internal Feedback (closed loop)
YES
Repeatability (% of span, typ.)
0.1
Exhaust Capacity (scfm) @ 5 psid
3
Mounting Orientation Insensitivity
Excellent
Independent Linearity (% of span, typ.)
n/a
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
