Type 1000 - T1000 Intrinsically Safe I/P CSA approval

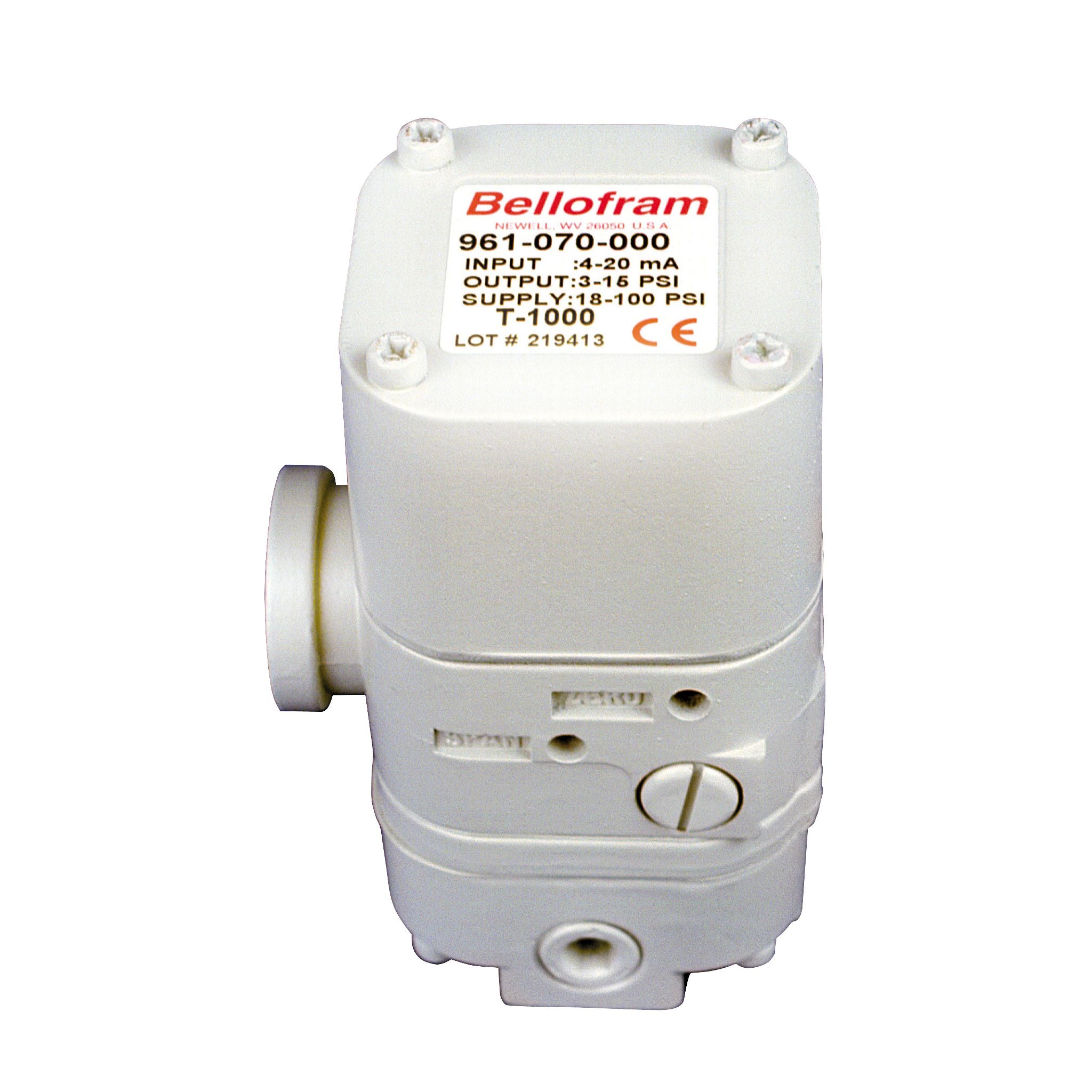

The Bellofram Precision Controls Type 1000 Intrinsically Safe I/P Transducer with CSA approval converts a 4-20 mA control signal into proportional pneumatic pressure for industrial automation and process-control applications. This configuration supports pneumatic output ranges up to 100 PSIG, uses an integral volume booster for flow up to 12 SCFM, and operates with supply pressure up to 100 psi. The compact design supports multiple mounting methods and is suited to valve actuators, positioners, dampers, air cylinders, controllers, HVAC equipment, and process instrumentation.
Features:
- Lightweight and Low Cost
- Built-in Volume Booster
- Small Size
- Field Reversible
- Low Air Consumption
- Mounts at Any Angle
- Convenient External Span & Zero Adjusts (Except for Explosion Proof Models)
- Wide Supply Pressure Range
- Low Supply Pressure Sensitivity
- Valve Actuators
- Damper and Louver Actuators
- Valve Positioners
- Controllers
- Relays
- Air Cylinders
- Clutches and Brakes
- Liquid, Gas and Slurry Processing Instrumentation
- HVAC Systems
- Paper Handling Controls
- Textile Processing Systems
- Energy Management Systems
- Petrochemical Processing Systems
- Split Ranging
Options
Explosion Proof Mounting Kit, Explosion Proof Panel Mounting Kit, DIN Rail Kit, Hirschman Connector Kit (3-prong), Filter Kit, 60 micron, Output Gauges, Dielectric Strength Testing,
Output Port
1/4" NPT
Supply Port
1/4" NPT
Exhaust Port
No
Logic Output
No
Air Consumption
6
Exhaust Capture
No
Measured Outlet
Midrange
Measured Supply
100 psi
Port Size
1/4" NPT,
1/2" NPT
Flow Rate (scfm)
12 scfm
Mounting Options
Pipe, Panel, Bracket or DIN-rail
External Feedback
No
Output Gauge Port
Yes
Input Signal
4-20 mA
Analog Monitor Output
No
Electrical Port (STD)
1/2" NPT
Operating Temp (⁰C)
-29º to 60º
E/P Supply Requirements
loop-powered
Maximum Accuracy
1%
Current Input Ranges (mA)
4-20 mA
Voltage Input Ranges (DC)
na
Accuracy (% of span, typ.)
1
Hysterisis (% of span, typ.)
1
Width x Depth x Height (in.)
2 1⁄8" – 2 1⁄8"– 4"
External Span/Zero Adjustment
Yes
Output Pressure Ranges
0-100 PSIG
Maximum Supply Pressure (psi)
100 psi
Minimum Supply Pressure (psi)
3 psig above output
Maximum Supply Pressure
100 PSIG
Electrical Connections (option)
Terminal Block, Din 43650-A
Internal Feedback (closed loop)
No
Repeatability (% of span, typ.)
0.5
Exhaust Capacity (scfm) @ 5 psid
2
Mounting Orientation Insensitivity
Some
Independent Linearity (% of span, typ.)
1
