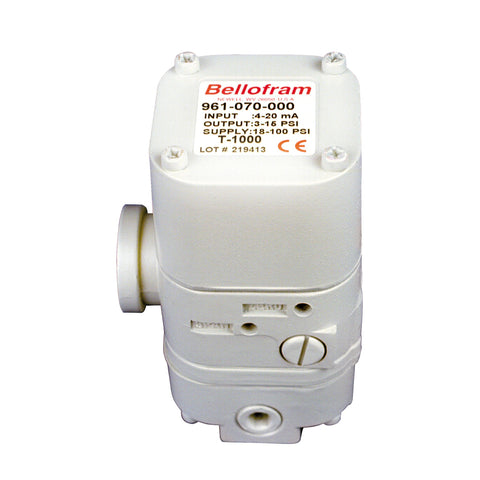

Type 1000 - T1000 I/P Transducer NEMA 4
The Type 1000 Transducer is an electropneumatic device that reduces a supply pressure to a regulated output pressure directly proportional to an electrical input signal. The Type 1000 accepts a wide range of supply pressures, ranging from a minimum of 3 psig (0.2 BAR) above the maximum output up to 100 PSIG (6.9 BAR). An integral pneumatic volume booster is included in the design to provide high flow capacity (up to 12 SCFM/339 SLPM). Model selections include general purpose, NEMA 4X Type, extended range, high relief, intrinsically safe, and explosion proof.
Features:
- Lightweight and Low Cost
- Built-in Volume Booster
- Small Size
- Field Reversible
- Low Air Consumption
- Mounts at Any Angle
- Convenient External Span & Zero Adjusts (Except for Explosion Proof Models)
- Wide Supply Pressure Range
- Low Supply Pressure Sensitivity
- Valve Actuators
- Damper and Louver Actuators
- Valve Positioners
- Controllers
- Relays
- Air Cylinders
- Clutches and Brakes
- Liquid, Gas and Slurry Processing Instrumentation
- HVAC Systems
- Paper Handling Controls
- Textile Processing Systems
- Energy Management Systems
- Petrochemical Processing Systems
- Split Ranging
Options
Explosion Proof Mounting Kit, Explosion Proof Panel Mounting Kit, DIN Rail Kit, Hirschman Connector Kit (3-prong), Filter Kit, 60 micron, Output Gauges, Dielectric Strength Testing, NEMA 4 Type Enclosure Option
E/P Supply Requirements
loop-powered
Voltage Input Ranges (DC)
n/a
Current Input Ranges (mA)
4-20 mA
Logic Output
No
Analog Monitor Output
No
Internal Feedback (closed loop)
No
External Feedback
No
Minimum Supply Pressure (psi)
3 psig above output
Maximum Supply Pressure (psi)
100 psi
Flow Rate (scfm)
12 scfm
Measured Supply
100 psi
Measured Outlet
Midrange
Exhaust Capacity (scfm) @ 5 psid
2
Exhaust Capture
No
Air Consumption
6
Repeatability (% of span, typ.)
0.5
Independent Linearity (% of span, typ.)
1
Hysterisis (% of span, typ.)
1
Accuracy (% of span, typ.)
1
Operating Temp (⁰C)
-29º to 60º
Output Gauge Port
Yes
Width x Depth x Height (in.)
2 1⁄8" – 2 1⁄8"– 4"
Supply Port
1/4" NPT
Output Port
1/4" NPT
Exhaust Port
No
Electrical Port (STD)
1/2" NPT
Electrical Connections (option)
Terminal Block, Din 43650-A
Mounting Options
Pipe, Panel, Bracket or DIN-rail
Mounting Orientation Insensitivity
Some
External Span/Zero Adjustment
Yes
Filter Output Pressure Ranges
0-100 PSIG
Filter Input Signal
4-20 mA
Filter Port Size
1/4" NPT,
1/2" NPT
Filter Maximum Supply Pressure
100 PSIG
Filter Maximum Accuracy
1%
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
