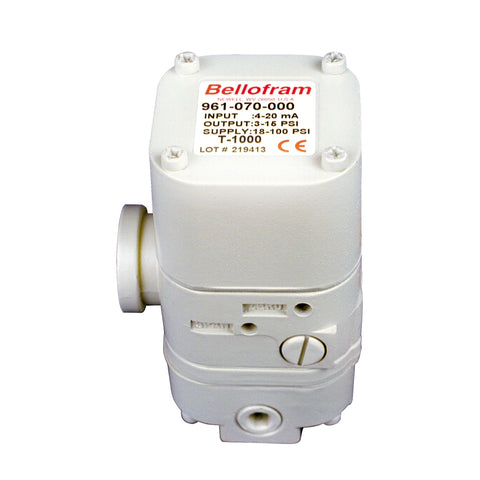

Type 1000 - T1000 I/P High Relief Transducer
The Bellofram Precision Controls Type 1000 I/P High Relief Transducer converts a 4-20 mA current signal into proportional pneumatic pressure and adds high exhaust capacity for faster pressure reduction. An integral pneumatic volume booster provides flow up to 12 SCFM, while the high-relief design provides 7 SCFM exhaust capacity at 5 psid. With supply pressure capability up to 100 psig and pipe, panel, bracket, or DIN-rail mounting, it is well suited to valve actuators, positioners, dampers, cylinders, HVAC equipment, and industrial process-control systems that require rapid blowdown.
Features:
- Lightweight and Low Cost
- Built-in Volume Booster
- Small Size
- Field Reversible
- Low Air Consumption
- Mounts at Any Angle
- Convenient External Span & Zero Adjusts (Except for Explosion Proof Models)
- Wide Supply Pressure Range
- Low Supply Pressure Sensitivity
- Valve Actuators
- Damper and Louver Actuators
- Valve Positioners
- Controllers
- Relays
- Air Cylinders
- Clutches and Brakes
- Liquid, Gas and Slurry Processing Instrumentation
- HVAC Systems
- Paper Handling Controls
- Textile Processing Systems
- Energy Management Systems
- Petrochemical Processing Systems
- Split Ranging
Options
Explosion Proof Mounting Kit, Explosion Proof Panel Mounting Kit, DIN Rail Kit, Hirschman Connector Kit (3-prong), Filter Kit, 60 micron, Output Gauges, Dielectric Strength Testing,
E/P Supply Requirements
loop-powered
Voltage Input Ranges (DC)
na
Current Input Ranges (mA)
4-20 mA
Logic Output
No
Analog Monitor Output
No
Internal Feedback (closed loop)
No
External Feedback
No
Minimum Supply Pressure (psi)
3 psig above output
Maximum Supply Pressure (psi)
100 psig
Flow Rate (scfm)
12 scfm
Measured Supply
100 psi
Measured Outlet
Midrange
Exhaust Capacity (scfm) @ 5 psid
7
Exhaust Capture
No
Air Consumption
6
Repeatability (% of span, typ.)
0.5
Independent Linearity (% of span, typ.)
1
Hysterisis (% of span, typ.)
1
Accuracy (% of span, typ.)
1
Operating Temp (⁰C)
-29º to 60º
Output Gauge Port
Yes
Width x Depth x Height (in.)
2 1⁄8" – 2 1⁄8"– 4"
Supply Port
1/4" NPT
Output Port
1/4" NPT
Exhaust Port
No
Electrical Port (STD)
1/2" NPT
Electrical Connections (option)
Terminal Block, Din 43650-A
Mounting Options
Pipe, Panel, Bracket or DIN-rail
Mounting Orientation Insensitivity
Some
External Span/Zero Adjustment
Yes
Filter Output Pressure Ranges
0-100 PSIG
Filter Input Signal
4-20 mA
Filter Port Size
1/4" NPT,
1/2" NPT
Filter Maximum Supply Pressure
100 PSIG
Filter Maximum Accuracy
1%
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
