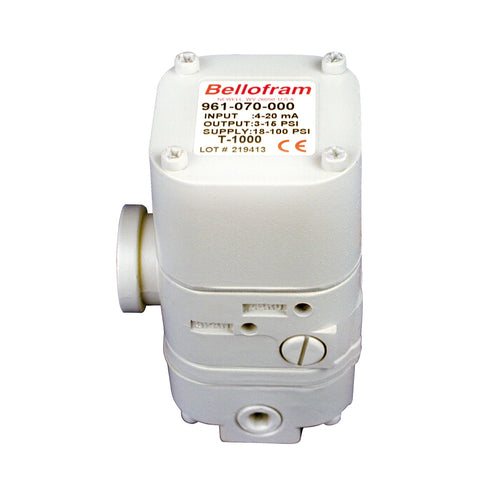

Type 1000 - T1000 Extended Range I/P
The Bellofram Precision Controls Type 1000 Extended Range I/P Transducer expands the standard current-to-pressure platform for applications requiring higher pneumatic output ranges. It accepts a 4-20 mA input and can be recalibrated across output ranges from approximately 3-35 PSIG to 3-145 PSIG. The extended-range design provides flow up to 24 SCFM and supports supply pressure up to 150 psig. It is designed for valve actuators, positioners, cylinders, process instrumentation, HVAC equipment, and other industrial systems that need proportional pneumatic control above standard pressure ranges.
Features:
- Lightweight and Low Cost
- Built-in Volume Booster
- Small Size
- Field Reversible
- Low Air Consumption
- Mounts at Any Angle
- Convenient External Span & Zero Adjusts (Except for Explosion Proof Models)
- Wide Supply Pressure Range
- Low Supply Pressure Sensitivity
- Valve Actuators
- Damper and Louver Actuators
- Valve Positioners
- Controllers
- Relays
- Air Cylinders
- Clutches and Brakes
- Liquid, Gas and Slurry Processing Instrumentation
- HVAC Systems
- Paper Handling Controls
- Textile Processing Systems
- Energy Management Systems
- Petrochemical Processing Systems
- Split Ranging
Options
Explosion Proof Mounting Kit, Explosion Proof Panel Mounting Kit, DIN Rail Kit, Hirschman Connector Kit (3-prong), Filter Kit, 60 micron, Output Gauges, Dielectric Strength Testing,
E/P Supply Requirements
loop-powered
Voltage Input Ranges (DC)
na
Current Input Ranges (mA)
4-20 mA
Logic Output
No
Analog Monitor Output
No
Internal Feedback (closed loop)
No
External Feedback
No
Minimum Supply Pressure (psi)
5 above output
Maximum Supply Pressure (psi)
150 psig
Flow Rate (scfm)
24 scfm
Measured Supply
150 psi
Measured Outlet
midrange
Exhaust Capacity (scfm) @ 5 psid
2 scfm
Exhaust Capture
No
Air Consumption
4.2 scfh
Repeatability (% of span, typ.)
0.5
Independent Linearity (% of span, typ.)
1.5-2.0
Hysterisis (% of span, typ.)
0.5
Accuracy (% of span, typ.)
2
Operating Temp (⁰C)
-29º to 60º
Output Gauge Port
Yes
Width x Depth x Height (in.)
2 1⁄8" – 2 1⁄8"– 4
Supply Port
1/4" NPT
Output Port
1/4" NPT
Exhaust Port
No
Electrical Port (STD)
1/2" NPT
Electrical Connections (option)
Terminal Block, Din 43650-A
Mounting Options
Pipe, Panel, Bracket or DIN-rail
Mounting Orientation Insensitivity
Some
External Span/Zero Adjustment
Yes
Filter Output Pressure Ranges
0-100 PSIG
Filter Input Signal
4-20 mA
Filter Port Size
1/4" NPT,
1/2" NPT
Filter Maximum Supply Pressure
150 PSIG
Filter Maximum Accuracy
1%
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
