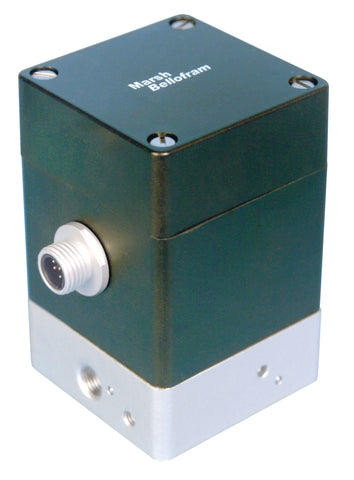

Type 3220- T3220 Analog Weatherproof Regulators
The Type 3210 single loop and 3220 double loop electro-pneumatic servo pressure controllers
incorporate two solenoid valves and an internal pressure sensor for increased sensitivity and accuracy. With current or voltage signal inputs, the Type 3210/3220 controls an output pressure with
an accuracy of ± .5% or better full scale. A wide range of output pressures available, from 29" Hg
vacuum to 600 psig. With a flow of 1.25 SCFM at 100 psi, the 3210/3220 can be used alone or in
conjunction with a volume booster to achieve flow rates in excess of 2,000 SCFM. The double loop
(3220) option permits 0-10 VDC feedback from a remote sensor.
Features:
- Weatherproof Enclosure
- User Selectable Input
- Analog Monitor Output
- Single Loop or Dual Loop Control
- 1.25 SCFM Flow Rate
- HVAC
- Medical Devices
- Low Flow Process
- Vacuum Control
E/P Supply Requirements
15-24 VDC (80-325 mA)
Voltage Input Ranges (DC)
0-10
Current Input Ranges (mA)
4-20
Impedance Current (Ohms)
250
Logic Output
YES
Analog Monitor Output
YES
Internal Feedback (closed loop)
YES
External Feedback
OPTION
Minimum Supply Pressure (psi)
100% of output
Maximum Supply Pressure (psi)
110% of output
Output Pressure Range(s) (psi)
0-5
Flow Rate (scfm)
1.2
Exhaust Capacity (scfm) @ 5 psid
10
Exhaust Capture
YES
Air Consumption
Negligible
Repeatability (% of span, typ.)
0.2
Independent Linearity (% of span, typ.)
0.2
Hysterisis (% of span, typ.)
0.5
Accuracy (% of span, typ.)
0.5
Operating Temp (⁰C)
0⁰ - 60⁰
Output Gauge Port
no
Width x Depth x Height (in.)
2.3" x 2.3" x 5" max.
Supply Port
1/4" NPT
Output Port
1/4" NPT
Exhaust Port
No. 10-32 UNF-2B
Electrical Port (STD)
micro style 6 pin micro
Mounting Options
Pipe (in line)
Mounting Orientation Insensitivity
Excellent
External Span/Zero Adjustment
YES
Reverse Acting
OPTION
Impedance Voltage (Ohms)
10 K
Filter Output Pressure Ranges
0-10 PSIG,
0-30 PSIG
Filter Input Signal
4-20 mA,
0-10 VDC
Filter Port Size
1/4" NPT
Filter Maximum Supply Pressure
100 PSIG
Filter Maximum Accuracy
0.50%
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
