Type 3120- T3120 Analog Circuit-Card Regulators

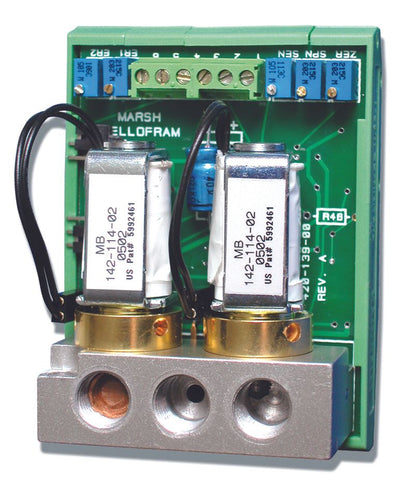

The compact Type 3110 (one-loop) and 3120 (two-loop) Circuit-Card Pressure Regulators are perfect
for size-conscious OEM’s, without sacrificing any of the high-end performance normally associated
with full-size I/P’s.
Industry-standard analog control signals (0-10V or 4-20 mA) are user-selectable (V or mA) and
configurable (zero and span). Industry-standard analog monitor output signal (0-10V) available for
user-monitoring of actual output pressure. Industry-standard logic output signals (high or low) are
available for user-monitoring of setpoint status – ‘at setpoint’ or ‘still searching’.
Features:
- Small Footprint
- User Selectable Input
- Analog Monitor Output
- Single Loop or Dual Loop Control
- Economical
- HVAC
- Medical Devices
- Low Flow Process
- Vacuum Control
E/P Supply Requirements
15-24 VDC (80-250 mA)
Voltage Input Ranges (DC)
0-10
Current Input Ranges (mA)
4-20
Impedance Current (Ohms)
250
Logic Output
YES
Analog Monitor Output
YES
Internal Feedback (closed loop)
YES
External Feedback
OPTION
Minimum Supply Pressure (psi)
100% of output
Maximum Supply Pressure (psi)
110% of output
Output Pressure Range(s) (psi)
0-15
Flow Rate (scfm)
1.2
Exhaust Capacity (scfm) @ 5 psid
1.2
Exhaust Capture
YES
Air Consumption
Negligible
Repeatability (% of span, typ.)
0.2
Independent Linearity (% of span, typ.)
0.2
Hysterisis (% of span, typ.)
0.5
Accuracy (% of span, typ.)
0.5
Operating Temp (⁰C)
0⁰ - 60⁰
Output Gauge Port
no
Width x Depth x Height (in.)
2.2" x 2.0" x 2.8"
Supply Port
1/8" NPT
Output Port
1/8" NPT
Exhaust Port
1/8" NPT
Electrical Port (STD)
Terminal Block
Mounting Options
DIN Tray
Mounting Orientation Insensitivity
Excellent
External Span/Zero Adjustment
YES
Reverse Acting
OPTION
Impedance Voltage (Ohms)
10 K
Filter Output Pressure Ranges
0-10 PSIG,
0-30 PSIG,
0-60 PSIG,
0-100 PSIG,
0-120 PSIG,
0-150 PSIG,
0-200 PSIG,
0-600 PSIG
Filter Input Signal
4-20 mA,
0-10 VDC
Filter Port Size
1/8" NPT
Filter Maximum Supply Pressure
100 PSIG,
150 PSIG,
600 PSIG
Filter Maximum Accuracy
0.50%
