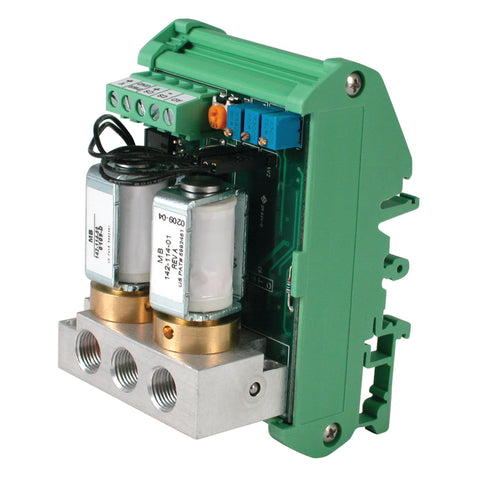

Type 3111- T3111 Analog Circuit-Card Regulators
The T3111 Compact Analog Pressure Controller is an economical version of the T3100 with no remote feedback or logic output capabilities. Output pressure is limited to 150 psig maximum. Jumper selections include AC/DC power and several control signal ranges. Manual output pressure adjustment and differential control signals are available. Overall product dimensions are identical to Type 3110.
Features:- Mounts on panel, DIN rail, or directly to multi-station manifold
- Small Footprint
- Analog Monitor Output (0-5V)
- Economical
- Manual override for out span adjustments
- HVAC
- Medical Devices
- Low Flow Process
- Vacuum Control
E/P Supply Requirements
24 VDC or 24 VAC
Voltage Input Ranges (DC)
0-5, 0-10, 0-15
Current Input Ranges (mA)
0-20
Impedance Current (Ohms)
250
Logic Output
NO
Analog Monitor Output
YES
Internal Feedback (closed loop)
YES
External Feedback
NO
Minimum Supply Pressure (psi)
100% of output
Maximum Supply Pressure (psi)
110% of output
Output Pressure Range(s) (psi)
0-15
Flow Rate (scfm)
1.2
Exhaust Capacity (scfm) @ 5 psid
1.2
Exhaust Capture
YES
Air Consumption
Negligible
Repeatability (% of span, typ.)
0.2
Independent Linearity (% of span, typ.)
0.2
Hysterisis (% of span, typ.)
0.5
Accuracy (% of span, typ.)
0.5
Operating Temp (⁰C)
0⁰ - 60⁰
Output Gauge Port
no
Width x Depth x Height (in.)
2.2" x 2.0" x 2.8"
Supply Port
1/8" NPT
Output Port
1/8" NPT
Exhaust Port
1/8" NPT
Electrical Port (STD)
Terminal Block
Mounting Options
DIN Tray
Mounting Orientation Insensitivity
Excellent
External Span/Zero Adjustment
YES
Reverse Acting
OPTION
Impedance Voltage (Ohms)
2K -100K
Filter Output Pressure Ranges
0-10 PSIG,
0-30 PSIG,
0-60 PSIG,
0-100 PSIG,
0-120 PSIG,
0-150 PSIG
Filter Input Signal
4-20 mA,
0-10 VDC,
0-5 VDC,
0-10 VDC
Filter Port Size
1/8" NPT
Filter Maximum Supply Pressure
150 PSIG
Filter Maximum Accuracy
0.50%
