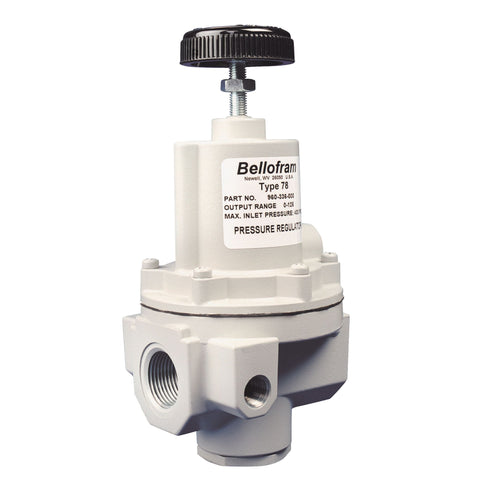

Type 78 - T78 High Flow Regulator
The Type 78 regulator is specifically designed
for applications that require large flow capability and accurate pressure control. This regulator
offers low droop, high accuracy, and fine
adjustment sensitivity. The use of a Bellofram
rolling diaphragm provides greater sensitivity
and improved accuracy. The Type 78 offers a
balanced pintle, which minimizes output pressure changes caused by fluctuations in supply
pressure. Careful design and quality materials
throughout assure long, trouble-free operation. The rugged die-cast zinc and aluminum
housings are pressure tested to assure safe
operation, and are designed to withstand harsh
and abusive environments. This durability is
attributed to a chemical conversion coating of
all cast components and a vinyl paint finish.
With a maximum supply pressure of up to 400
psig/27.6 BAR and output ranges up to 125
psig/8.6 BAR, the Type 78 can achieve flow
rates of well over 200 SCFM. It can be panel or
pipe mounted.
Features:
- Rugged die-cast zinc and aluminum housings, pressure treated for use in harsh environments
- Port sizes of 3/8, 1/,2 3/4 and 1 NPT and BPST with 1/4 NPT gauges
- Five different pressure output ranges of up to 125 psig (8.6 BAR)
- Maximum supply pressure rated at 400 psig (27.6 BAR)
- Achievable flow rates of well over 200 SCFM
- Pipe or rail mounting capabilities
- High-flow Actuation
- High-flow Louvers
- Rollers and Winders
- High-flow Control Loops
- Calibration Loops
- Any OEM or Industrial Pressure Regulator Application Where a High Degree of Accuracy is Required
Size
3.82" X 3.82" X 7.5"
Maximum Supply Pressure
400 psig / 27.6 BAR
Pressure Ranges
0-2 psig, 0-10 psig,
0-30 psig,
0-60 psig, 0-125 psig
0-30 psig,
0-60 psig, 0-125 psig
Port Sizes
3/8", 1/2", 3/4", 1" NPT
Sensitivity
Less than 1" water column
Forward Flow Capacity
200 SCFM
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
14 SCFM at 5 psi / 0.3 BAR above 20 psig / 1.4 BAR
set point (0-30 psig / 0-2.1 BAR range unit)
set point (0-30 psig / 0-2.1 BAR range unit)
Temperature Range
-40˚F (-40˚C) to 200˚F (93˚C)
Total Air Consumption @ Maximum Output
less than 12 SCFH at 125 psig / 8.6 BAR
output pressureq
output pressureq
Materials of Construction
Body: Die Cast Zinc
Bonnet: Die Cast Aluminum Alloy
Knob: Phenolic Plastic, Plated Steel
Diaphragms: Nitrile Elastomers with Dacron Fabric
Other Internal Materials: Brass, Stainless Steel, and Zinc
Bonnet: Die Cast Aluminum Alloy
Knob: Phenolic Plastic, Plated Steel
Diaphragms: Nitrile Elastomers with Dacron Fabric
Other Internal Materials: Brass, Stainless Steel, and Zinc
Effect of Supply Pressure Variation on Outlet Pressure
2.1 psig
Effect of Changes in Flow on Regulated Pressure
less than ± 0.35 psig / 0.02 BAR for a supply
variation of 100 psig / 6.9 BAR
variation of 100 psig / 6.9 BAR
Mounting Options
Pipe or Panel
Filter Output Pressure Range(s)
0-2 PSIG,
0-10 PSIG,
0-30 PSIG,
0-60 PSIG,
0-120 PSIG,
0-150 PSIG
Filter Maximum Supply Pressure
400 PSIG
Filter Port Size
3/8" NPT
Filter Flow Capacity
101-200 SCFM
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
