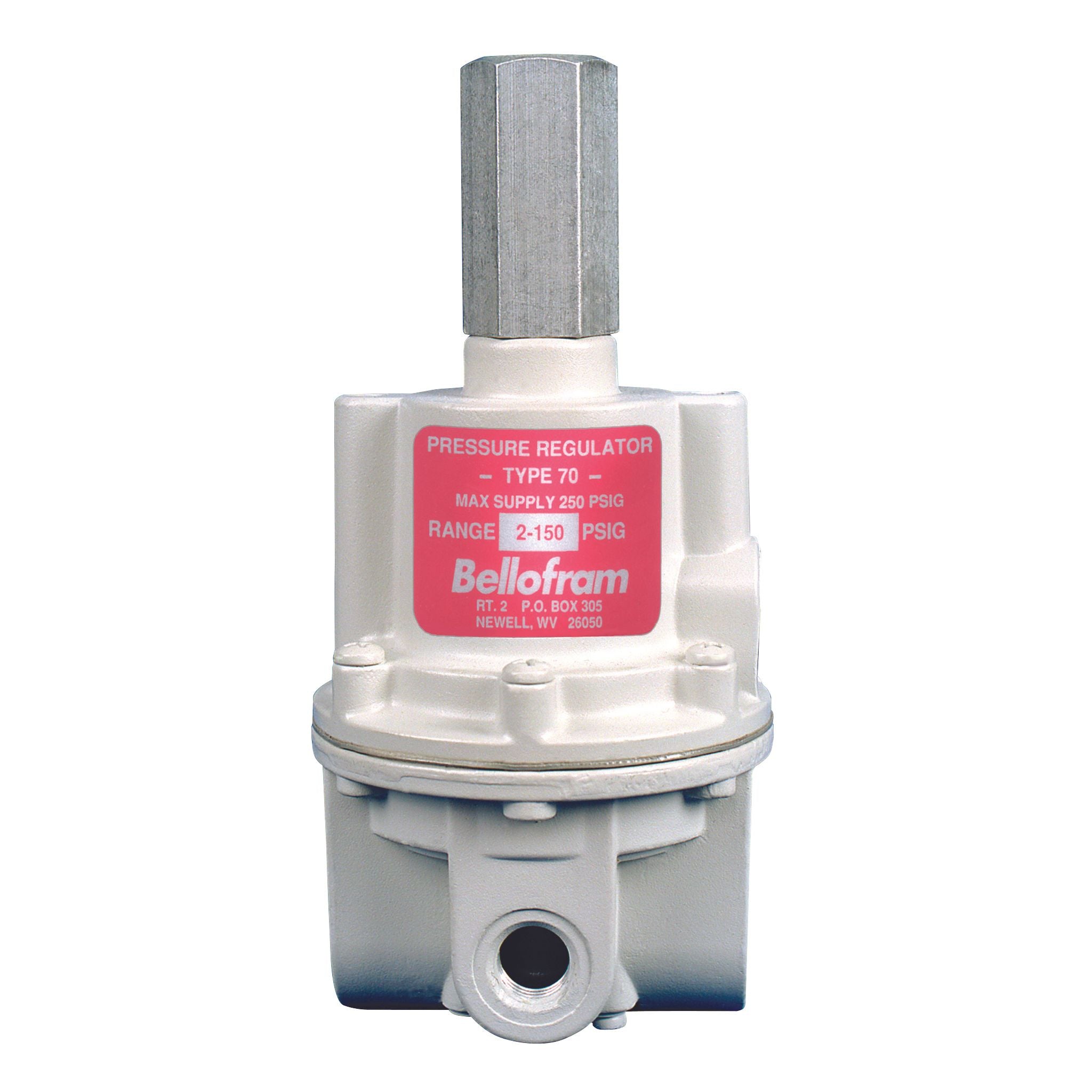

Type 70 - T70 High Flow Air Pressure Regulator - Air Flow Regulator - high flow regulator
The Type 70 Regulator is specifically designed for applications that require substantial flow capacity and accurate pressure controls. Flows of 80 SCFM (2250 LPM) can be attained. Downstream pressure can be set within 0.25 in. (6.3mm) of water column and is accurately maintained under varying flow conditions with the help of an aspirator tube which adjusts the air supply in accordance with the flow velocity. A balanced supply valve, utilizing a rolling diaphragm, makes the regulator virtually immune to changes in supply pressure. The Type 70 has a rugged precision die cast aluminum housing, and is pressure-tested and chromatetreated for internal corrosion resistance. The regulator housing is finished with vinyl paint which resists scratching, weathering and other physical abuse.
Features:- High Flow Capacity – Up to 80 SCFM (2266 LPM)
- Responds Quickly to Minute Changes in Downstream Pressure
- Dampening Action of Aspirator Tube Maintains Downstream Pressure
- Honking & Buzzing Eliminated By Action of Integral Baffle and Aspirator Tube
- Stack-up Construction Can Be Disassembled & Serviced without Removal from Air Line
- Optional Versions Include: Non-Relieving, Corrosive Resistant Epoxy Finish, Tapped Vent, Mounting Brackets, Pressure Gauge, Low Bleed, Check Valve
- Large Flow Actuation
- High-flow Louvers
- Rollers and Winders
- High-flow Control Loops
- Calibration Loops
- Any OEM or Industrial Pressure Regulator Application Where a High Degree of Accuracy is Required
0-10 psig (0-0.7 BAR)
0-30 psig (0-2.1 BAR)
1-60 psig (0.1-4.1 BAR)
2-150 psig (0.1-10.3 BAR)
3-200 psig (0.2-13.8 BAR)
50 (1416 LPM)
or 80 SCFM (2266 LPM)
vinyl paint
Adjusting Screw: Plated steel
Trim: Plated steel, brass,
acetal resin
Diaphragm: Buna-N with
polyester fabric
Knob: Phenolic plastic
Spring: Music wire
(3/8 NPT, 0-30 psig / 0-2.1 BAR range,
15 psig / 1 BAR set point)
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
