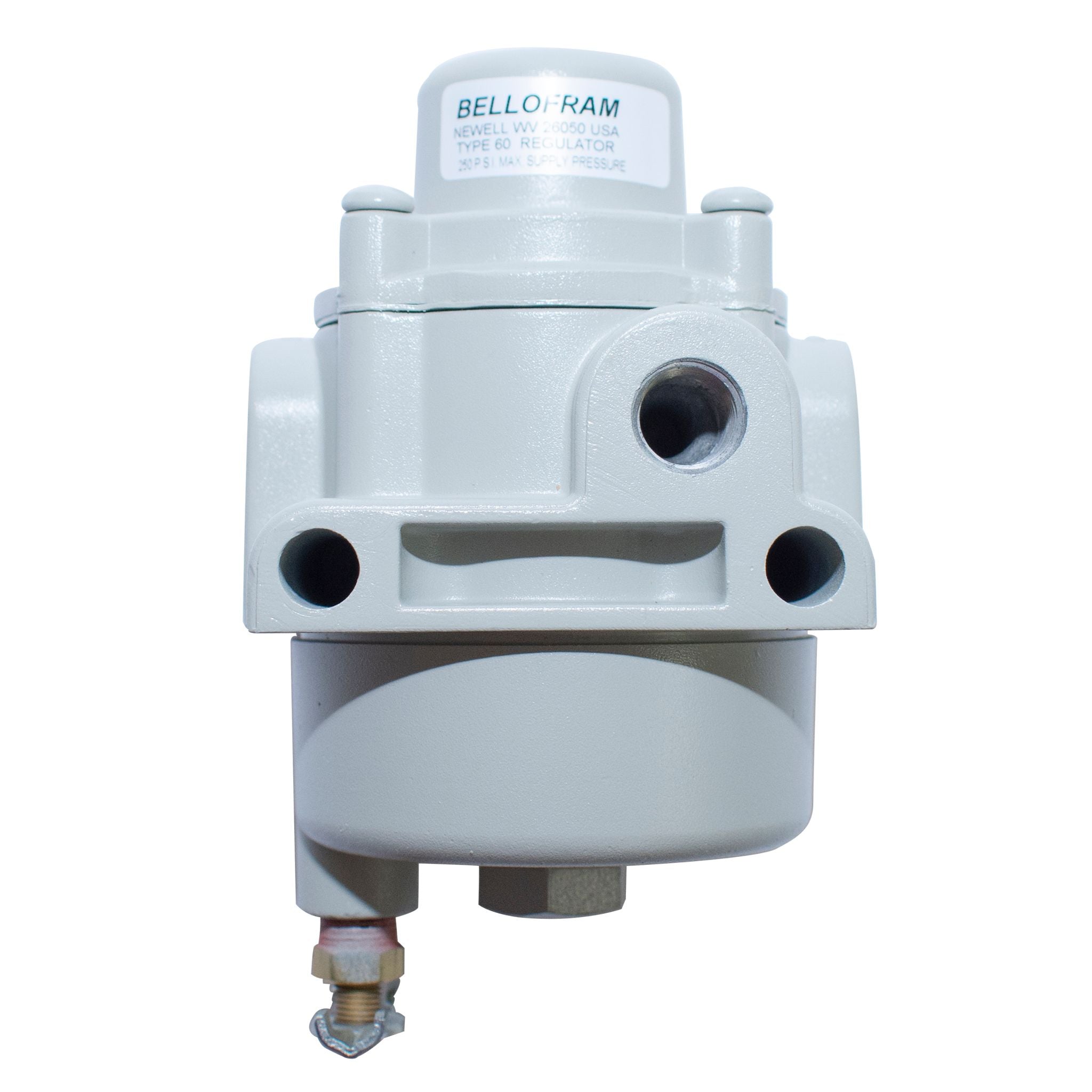

Type 60 - T60 Filter/Dripwell Regulator Factory Preset
Marsh Bellofram’s General Purpose Type 60
and Type 65 Precision Air Regulators are reliable precision units designed for instrumentation and general purpose use. The Type 60 is a
pre-set, fixed-pressure unit with a dripwell.
The Type 65 is similar to the Type 60, but
without a dripwell.
Test data for these regulators show excellent
performance characteristics compared with
those of similar units presently on the market.
These Marsh Bellofram regulators are generally superior in regulated pressure vs. flow,
forward-to-reverse flow offset, supply pressure
sensitivity, repeatability and stability.
Ruggedly designed and constructed, the regulators have housings of diecast aluminum. Both
models are finished with vinyl paint (which
resist scratching, weathering and other physical
abuse), and are pressure and leak tested prior
to shipment from the factory.
Features:
- Pre-Set, ideal for OSHA regulations
- Superior regulation characteristics
- Rugged, corrosion-resistant construction
- Excellent stability and repeatability
- Self-relieving
- Low droop at high flow
- Several mounting options
- Low cost
- Pilot-operated controllers
- Related instruments
- Air chucks
- Air spray guns
- Air cylinders and actuators
- Industrial pneumatic systems and equipment
Size
3.19" X 3.19" X 4.70" (81 X 81 X 119 mm)
Port Sizes
1/4"
Sensitivity
1" Water Column
Pressure Ranges
0-20 psig (0-1.4 BAR)
20-40 psig (1.4-2.8 BAR)
40-60 psig (2.8-4.1 BAR)
20-40 psig (1.4-2.8 BAR)
40-60 psig (2.8-4.1 BAR)
Mounting Options
Pipe, Bracket or
Thru Body Holes
Thru Body Holes
Temperature Range
0 to 160°F
Forward Flow Capacity
20 SCFM
(566 LPM)
(566 LPM)
Maximum Supply Pressure
250 psig (17.3 BAR)
Materials of Construction
Body: Diecast aluminum with
vinyl paint
Adjusting Screw: Plated steel
Trim: Plated steel, brass,
acetal resin
Diaphragm: Buna-N elastomer and
polyester fabric
Knob: None
Spring: Music wire
vinyl paint
Adjusting Screw: Plated steel
Trim: Plated steel, brass,
acetal resin
Diaphragm: Buna-N elastomer and
polyester fabric
Knob: None
Spring: Music wire
Total Air Consumption @ Maximum Output
6 SCFH (2.84 LPM) Maximum
Effect of Changes in Flow on Regulated Pressure
3 psig (0.2 BAR) for 10 SCFM ( 283 LPM)
(1/4 NPT, 20 psig / 1.4 BAR set point)
(1/4 NPT, 20 psig / 1.4 BAR set point)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1 SCFM (2.8 LPM)
Effect of Supply Pressure Variation on Outlet Pressure
< 0.2 psig (0.01 BAR)
for 25 psig (1.7 BAR)
for 25 psig (1.7 BAR)
