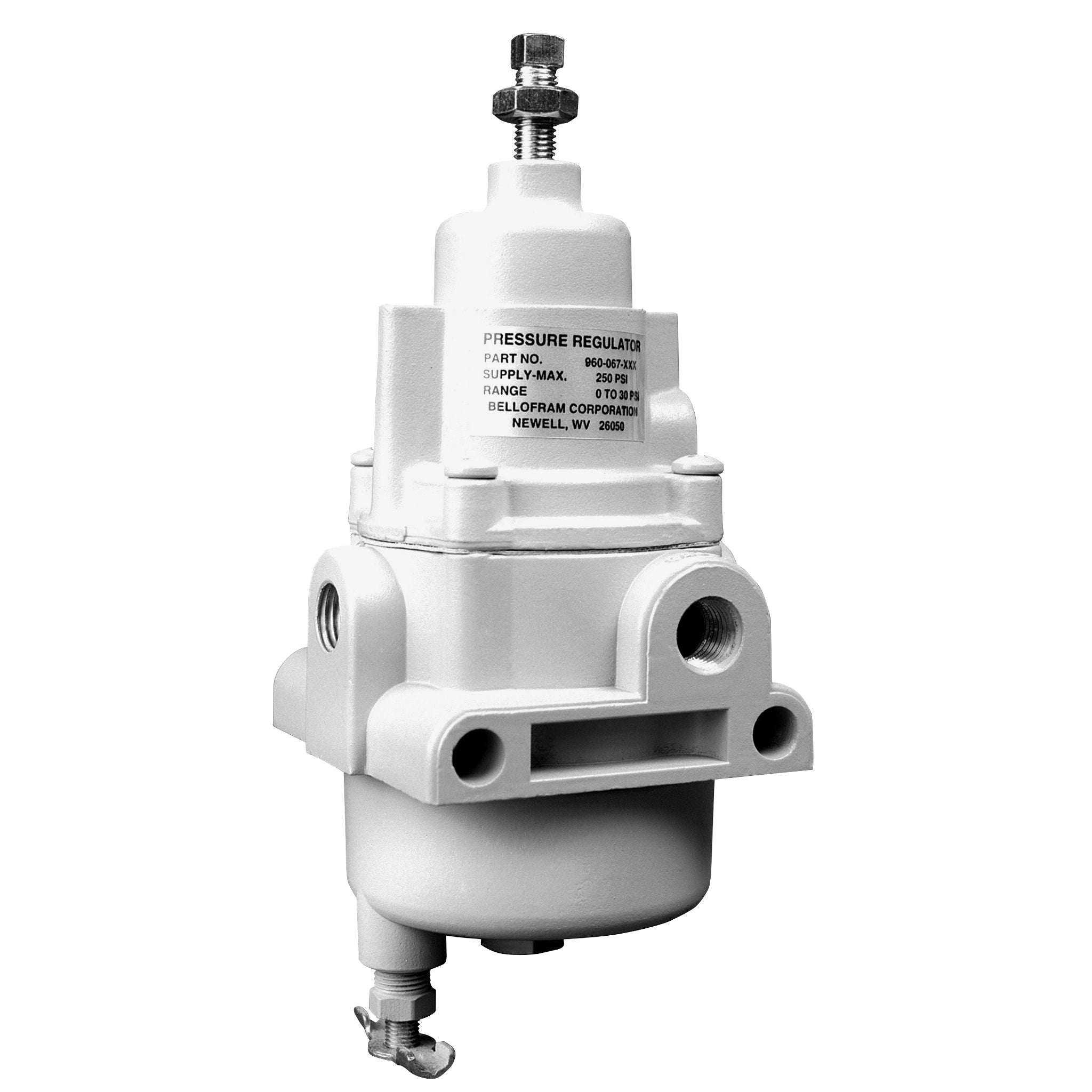

Type 50- T50 Filter/Dripwell Regulator
Marsh Bellofram’s General Purpose Type 50 and Type 50 NACE Filter Regulators are reliable precision units designed for instrumentation and general purpose use in both standard environments (Type 50), and corrosive environments (Type 50 NACE). The Type 50 NACE complies with NACE material requirement #MR0175 for sulfide stress cracking resistant metallic material for oil field equipment.
Features:
- Superior regulation characteristics
- Rugged, corrosion-resistant construction
- Excellent stability and repeatability
- Self-relieving
- Integral, 40 micron, self-cleaning filter
- Low droop at high flow
- Several mounting options
- Meets ATEX II 2 G Dc T 6 (Non-electrical certification)
- Oilfield Equipment (NACE approved version)
- Chemical/Petro-Chemical Processing Plants (NACE approved version)
- Corrosive Industrial Environments (NACE approved version)
- Inert Gases
- Air Chucks
- Air Spray Guns
- Air Cylinders and Actuators
- Pulp and Paper Handling
- Industrial Pneumatic Systems and Equipment
- Industrial Valve Control
- Pilot-operated Controllers and Instruments
Size
3.19" X 3.19" X 7.25"
Port Sizes
1/4"
Sensitivity
1" Water Column (2.5 cm)
Pressure Ranges
0-10 psig
0-30 psig
0-60 psig
0-120 psig
0-30 psig
0-60 psig
0-120 psig
Mounting Options
Pipe, Panel, Bracket or Thru Body Holes
Temperature Range
0-160˚F (-18 to 71˚C)
Forward Flow Capacity
20 SCFM (566 LPM)
Maximum Supply Pressure
250 psig (17.2 BAR)
Materials of Construction
Body: Die cast aluminum with vinyl paint
Adjusting Screw: Plated steel
Trim: Plated Steel, Brass, Acetal Resin
Diaphragm: Buna-N Elastomer and Polyester Fabric
Knob: Phenolic Plastic (option)
Spring: Music wire
Adjusting Screw: Plated steel
Trim: Plated Steel, Brass, Acetal Resin
Diaphragm: Buna-N Elastomer and Polyester Fabric
Knob: Phenolic Plastic (option)
Spring: Music wire
Total Air Consumption @ Maximum Output
6 SCFH (2.8 LPM)
Effect of Changes in Flow on Regulated Pressure
4 psig / 0.3 BAR over flow of 10 SCFM / 283 LPM
(1/4 NPT, 20 psig / 1.4 BAR set point)
(1/4 NPT, 20 psig / 1.4 BAR set point)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1–0.45 SCFM Typical (2.8 - 12.7 LPM)
Effect of Supply Pressure Variation on Outlet Pressure
< 0.2 psig (0.01 BAR)
