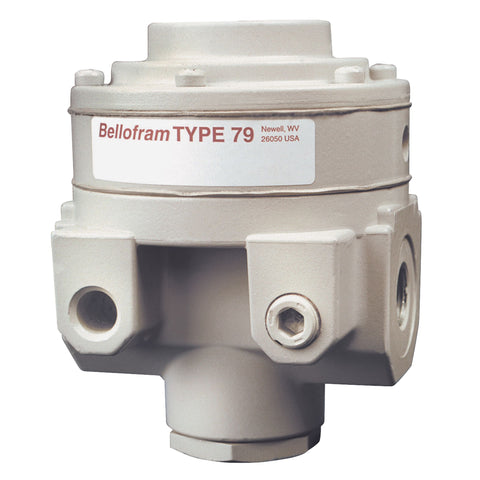

Type 79 - T79 HR High Relief High Flow Relay
The Bellofram Precision Controls Type 79HR is a high-relief, high-flow precision air relay for pneumatic systems that need both large forward-flow capacity and rapid downstream pressure release. The 1:1 relay uses a balanced pintle and rolling diaphragm to reduce sensitivity to supply-pressure changes while maintaining accurate output pressure. At the stated test condition, forward flow exceeds 125 SCFM and exhaust capacity is approximately 39 SCFM. With maximum supply pressure up to 400 psig and large port options from 3/8 through 1 inch, the Type 79HR is suited to volume boosting, tensioning, dancer and calender roll loading, cylinder control, and other high-flow pneumatic applications.
Features:
- Balanced Pintle
- High Flow Capacity
- Field Serviceable
- Large Port Sizes Available
- Air Piloted or Dome Loaded
- 200 PSIG Output
- Optional High Relieving (Type 79HR) and Valve Control (Type 79V)
- Gas Flow Control
- Tensioning Control
- Volume Boosting
- Dancer Roll Loading
- Calendar Roll Loading
- Cylinder Bucking Control
- Valve Motor Loading
Maximum Supply Pressure
400 psig (27.6 BAR)
Pressure Ranges
0-200 psig
(0-13.8 BAR)
(0-13.8 BAR)
Port Sizes
3/8", 1/2", 3/4", 1"
NPT, BSPP, BSPT
NPT, BSPP, BSPT
Sensitivity
1" H2O (25mm)
Forward Flow Capacity
>125 SCFM (3500 LPM)
@ 20 psig (1.4 BAR)
signal and 100 psig
(6.9 BAR) supply
@ 20 psig (1.4 BAR)
signal and 100 psig
(6.9 BAR) supply
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
39 SCFM (3500 LPM)
@ 5 psig (0.35 BAR)
above a 20 psig
(1.4 BAR) setpoint
@ 5 psig (0.35 BAR)
above a 20 psig
(1.4 BAR) setpoint
Temperature Range
-40 to 200˚F
(-40 to 93˚C)
(-40 to 93˚C)
Total Air Consumption @ Maximum Output
<12 SCFH (5.7 LPM)
Materials of Construction
aluminum, brass, carbon steel, stainless steel, acetal, nitrile
Supply pressure sensitivity
<0.35 psig (0.02 BAR)
per 100 psig (3.5 BAR)
change in supply pressure
per 100 psig (3.5 BAR)
change in supply pressure
Maximum Signal
200 psig
(13.8 BAR)
(13.8 BAR)
Ratio of Accuracy for 12 psig span
<1.5%
Filter Ratio
1:1
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
