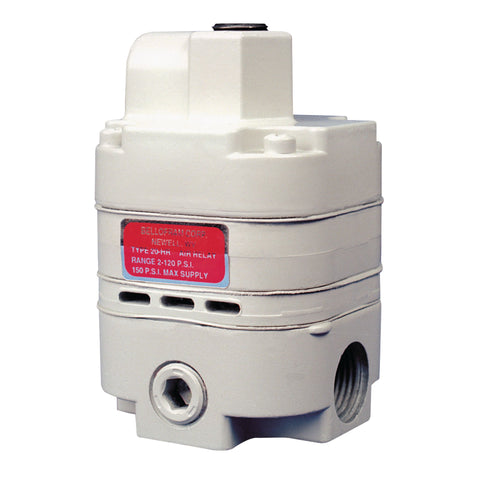

Type 20 - T20 HR Precision Relay High Relief Capacity
The Bellofram Precision Controls Type 20 HR is a compact high-relief precision air relay designed for accurate 1:1 pneumatic signal control with faster exhaust than the standard Type 20. The two-stage, pilot-operated design provides positive and negative bias adjustment, output pressure from 2 to 120 psig, and forward flow up to 14 SCFM. At the stated test condition, exhaust capacity is approximately 10 SCFM. The Type 20 HR is suited to cylinder return strokes, air hoists, gate actuators, brakes, control valves, remote positioning, tensioning systems, and web-tracking applications that require both precise pressure control and quick pressure release.
Features:
- Extremely Accurate and Cost-Effective Relay
- Positive and Negative Bias Capability
- Small Size
- Rugged and Stable
- Basic Relay Available With Choice of Three Port Sizes
- High Release Versions Available
- Gate Actuators
- Air Hoists
- Disc & Shoe Brakes
- Remote Positioning Devices
- Valve Rotors
- Control Valves
- Tensioning Systems
- Web Tracking Systems
Maximum Supply Pressure
153 psig (10.3 BAR)
Pressure Ranges
2-120 psig
(0.1 – 8.3 BAR)
(0.1 – 8.3 BAR)
Port Sizes
1/8", 1/4", 3/8"
NPT, BSPP, BSPT
NPT, BSPP, BSPT
Sensitivity
1/8" H2O (3.2mm)
Forward Flow Capacity
14 SCFM (400 LPM)
@ 20 psig (1.4 BAR)
signal and 100 psig
(6.9 BAR) supply
@ 20 psig (1.4 BAR)
signal and 100 psig
(6.9 BAR) supply
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
10 SCFM (285 LPM)
@ 5 psig (0.35 BAR)
above a 20 psig
(1.4 BAR) setpoint
@ 5 psig (0.35 BAR)
above a 20 psig
(1.4 BAR) setpoint
Output Pressure Ranges
2-120 psig
(0.1 – 8.3 BAR)
(0.1 – 8.3 BAR)
Temperature Range
-20 to 160˚F
(-29 to 71˚C)
(-29 to 71˚C)
Total Air Consumption @ Maximum Output
8 SCFH (4 LPM)
Materials of Construction
zinc alloy, stainless steel, brass, carbon steel, acetal, nitrile
Supply pressure sensitivity
0.005 psig (0.35 mBAR)
per 25 psig (1.7 BAR)
change in supply pressure
per 25 psig (1.7 BAR)
change in supply pressure
Maximum Signal
150 psig
(10.3 BAR)
(10.3 BAR)
Ratio of Accuracy for 12 psig span
<0.5%
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
