Type 1500 - T1500 Indoor Use/General Purpose - Positioner Control Valve

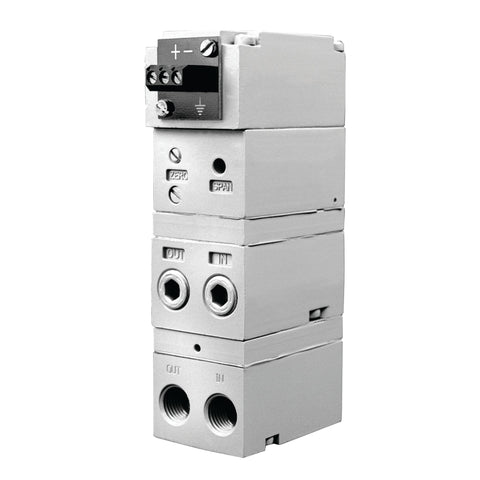

The T1500 is a new series of electropneumatic transducers that convert an electrical signal to a proportional pressure output. It provides precision electro-pneumatic control to actuators, valves, positioners, final control elements and is ideally used for high-flow control devices. The Type 1500's compact size and accessibility to ports and adjustments allow the unit to be installed in space-constrained locations or in a manifold for multi-device control.
Output Port
1/4" NPT
Internal Feedback (closed loop)
No
Maximum Supply Pressure (psi)
120
Maximum Accuracy
1%
Logic Output
No
Air Consumption
3
Independent Linearity (% of span, typ.)
<0.75
Operating Temp (⁰C)
-28º to 66º
Input Signal
4-20 mA
E/P Supply Requirements
Loop-powered
Measured Outlet
15
Mounting Options
Inline, pipe, panel, DIN-rail, manifold
Electrical Port (STD)
1/2" NPT
Output Gauge Port
Yes
Measured Supply
120
Maximum Supply Pressure
100 PSIG
Exhaust Capacity (scfm) @ 5 psid
>1.0
Minimum Supply Pressure (psi)
5 PSI above max
Electrical Connections (option)
DIN 43 650-A, Term Blk, 1/2" BSPT
Exhaust Capture
No
Repeatability (% of span, typ.)
<0.5
Supply Port
1/4" NPT
Mounting Orientation Insensitivity
Some
Voltage Input Ranges (DC)
4-20mA DC
External Span/Zero Adjustment
Yes
Hysterisis (% of span, typ.)
<0.75
Width x Depth x Height (in.)
1.5" – 3.2" – 3.7"
Exhaust Port
No
Analog Monitor Output
No
Flow Rate (scfm)
6.5
External Feedback
No
Current Input Ranges (mA)
4-20mA
Output Pressure Ranges
0-30 PSIG
Accuracy (% of span, typ.)
0.75
