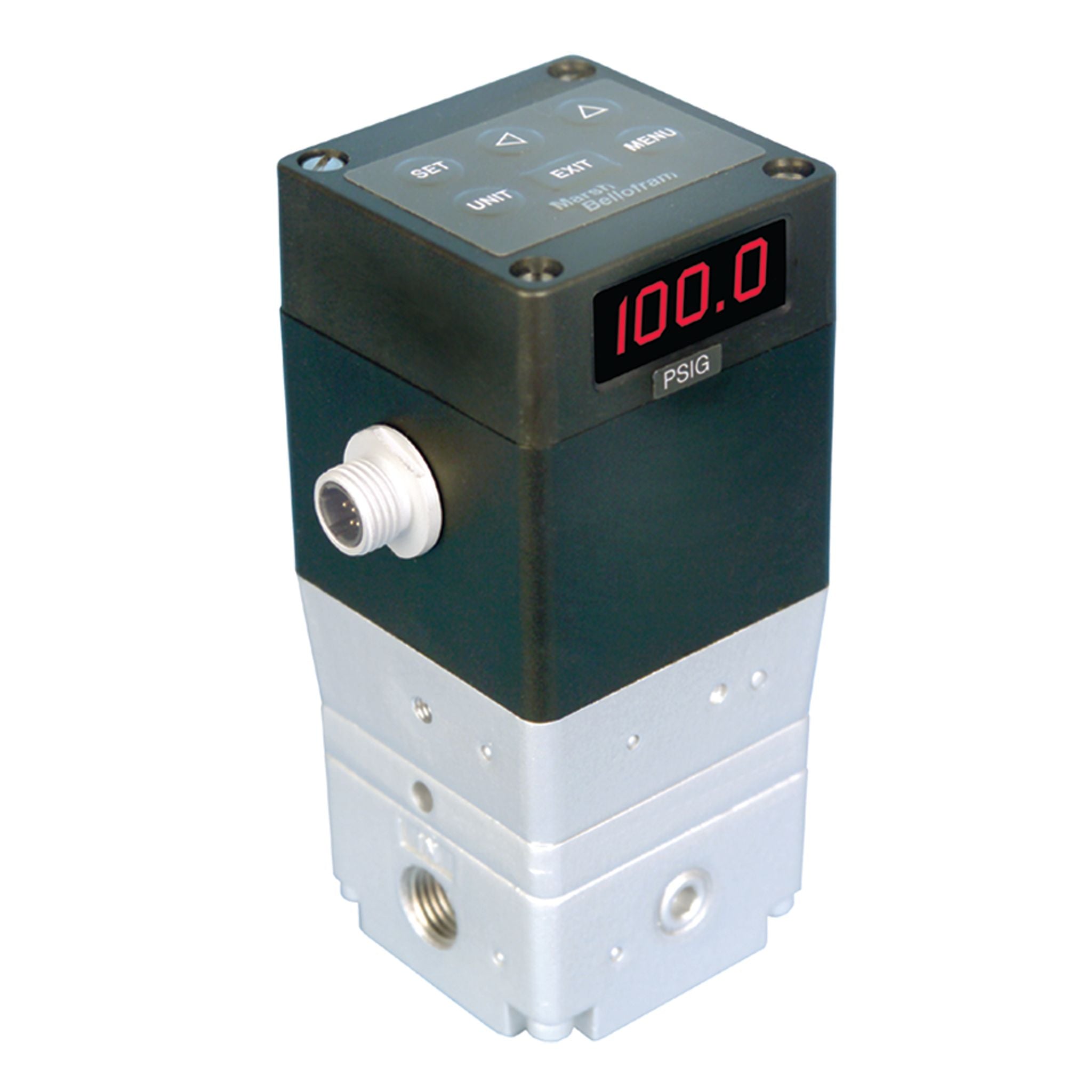

Type 3521- T3521 Digital Weatherproof Regulators
The 3521 offers solenoid valve technology with forward flow equivalent to standard industrial electronic regulators or I/P transducers. Available with local keypad programming option or RS-485 Digital Communications for PLC or PC control. Dual solenoid valves with internal pressure sensor and advanced microprocessor control. A built-in air volume booster provides the 3521 with forward flow up to 17 SCFM. Proportional - Integral - Derivative (PID) control. Ranges from 0 to 150 psig. Reverse flow (exhaust) of up to 7 SCFM. The double loop (3521) option permits 0-10 VDC feedback from a remote sensor. The keypad is available with a four digit display of the output pressure.
Features:- Serial Interface
- Digital or Analog Inputs
- Analog Monitor Output
- Single Loop or Dual Loop Control
- Forward Flow up to 17 SCFM
- Digital Display
- Weatherproof Housing
- Web Tensioning
- Automotive Painting
- Tire Manufacturing
- High Flow Process Applications
E/P Supply Requirements
15+/- 10% VDC, 24 +/- 10% VDC (80-325 mA)
Voltage Input Ranges (DC)
0-10
Current Input Ranges (mA)
0-20, 4-20
Impedance Current (Ohms)
250
Logic Output
NO
Analog Monitor Output
YES
Internal Feedback (closed loop)
YES
External Feedback
OPTION
Minimum Supply Pressure (psi)
100% of output
Maximum Supply Pressure (psi)
110% of output
Output Pressure Range(s) (psi)
0-15
Flow Rate (scfm)
1.2
Exhaust Capacity (scfm) @ 5 psid
1.2
Exhaust Capture
NO
Air Consumption
Negligible
Repeatability (% of span, typ.)
0.1 to 0.2
Independent Linearity (% of span, typ.)
0.1 to 0.2
Hysterisis (% of span, typ.)
0.1 to 0.5
Accuracy (% of span, typ.)
0.1 to 0.5
Operating Temp (⁰C)
0⁰ - 60⁰
Output Gauge Port
YES
Width x Depth x Height (in.)
2.3" x 2.3" x 5" max.
Supply Port
1/4" NPT
Output Port
1/4" NPT
Exhaust Port
No. 10-32 UNF-2B
Electrical Port (STD)
micro style 6 pin micro
Mounting Options
Pipe
Mounting Orientation Insensitivity
Excellent
External Span/Zero Adjustment
YES (electronic)
Reverse Acting
YES
Impedance Voltage (Ohms)
2 K - 8 K
Filter Output Pressure Ranges
0-10 PSIG,
0-30 PSIG,
0-60 PSIG,
0-100 PSIG,
0-120 PSIG,
0-150 PSIG
Filter Input Signal
4-20 mA,
0-10 VDC
Filter Port Size
1/4" NPT
Filter Maximum Supply Pressure
100 PSIG,
150 PSIG
Filter Maximum Accuracy
0.50%
