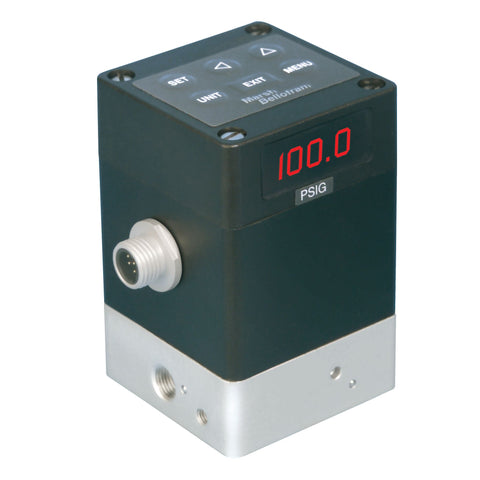

Type 3510- T3510 Digital Weatherproof Regulators
The Type 3510 single and 3520 double loop electro-pneumatic servo pressure controllers combine the
advantages of reliable solenoid valves and digital control. Available with a local keypad programming
option or RS-485 Digital Communications for PLC or PC control. The digital pressure controller is one
of the most precise, accurate, and reliable devices available in the industry today, by giving the user
the ability to set and extract data directly from the transducer with a PC or automation system. With
a forward flow of 1.25 SCFM at 100 psi, the 3510/3520 can be used alone for many applications or
combined with a volume booster for flows in excess of 2,000 SCFM. Many output ranges are available,
from 29" Hg vacuum to 600 psig. Standard accuracy is ±0.5% FS or better. A four digit display of the
output pressure is available with the keypad model.
Features:
- Digital Display
- Serial Interface
- Digital or Analog Inputs
- Analog Monitor Output
- Single Loop and Dual Loop Control
- Forward Flow 1.25 SCFM at 100 PSI
- Weatherproof Housing
- Web Tensioning
- Automotive Painting
- Tire Manufacturing
- High Flow Process Applications
E/P Supply Requirements
15+/- 10% VDC, 24 +/- 10% VDC (80-325 mA)
Voltage Input Ranges (DC)
0-10
Current Input Ranges (mA)
0-20, 4-20
Impedance Current (Ohms)
250
Logic Output
NO
Analog Monitor Output
YES
Internal Feedback (closed loop)
YES
External Feedback
OPTION
Minimum Supply Pressure (psi)
100% of output
Maximum Supply Pressure (psi)
110% of output
Output Pressure Range(s) (psi)
0-15
Flow Rate (scfm)
1.2
Exhaust Capacity (scfm) @ 5 psid
1.2
Exhaust Capture
NO
Air Consumption
Negligible
Repeatability (% of span, typ.)
0.1 to 0.2
Independent Linearity (% of span, typ.)
0.1 to 0.2
Hysterisis (% of span, typ.)
0.1 to 0.5
Accuracy (% of span, typ.)
0.1 to 0.5
Operating Temp (⁰C)
0⁰ - 60⁰
Output Gauge Port
YES
Width x Depth x Height (in.)
2.3" x 2.3" x 5" max.
Supply Port
1/8" NPT
Output Port
1/8" NPT
Exhaust Port
No. 10-32 UNF-2B
Electrical Port (STD)
micro style 6 pin micro
Mounting Options
Pipe
Mounting Orientation Insensitivity
Excellent
External Span/Zero Adjustment
YES (electronic)
Reverse Acting
YES
Impedance Voltage (Ohms)
2 K - 8 K
Filter Output Pressure Ranges
0-2 PSIG,
0-10 PSIG,
0-30 PSIG,
0-60 PSIG,
0-100 PSIG,
0-120 PSIG,
0-150 PSIG,
0-200 PSIG,
0-600 PSIG
Filter Input Signal
4-20 mA,
0-10 VDC
Filter Port Size
1/8" NPT
Filter Maximum Supply Pressure
100 PSIG,
150 PSIG,
600 PSIG
Filter Maximum Accuracy
0.50%
