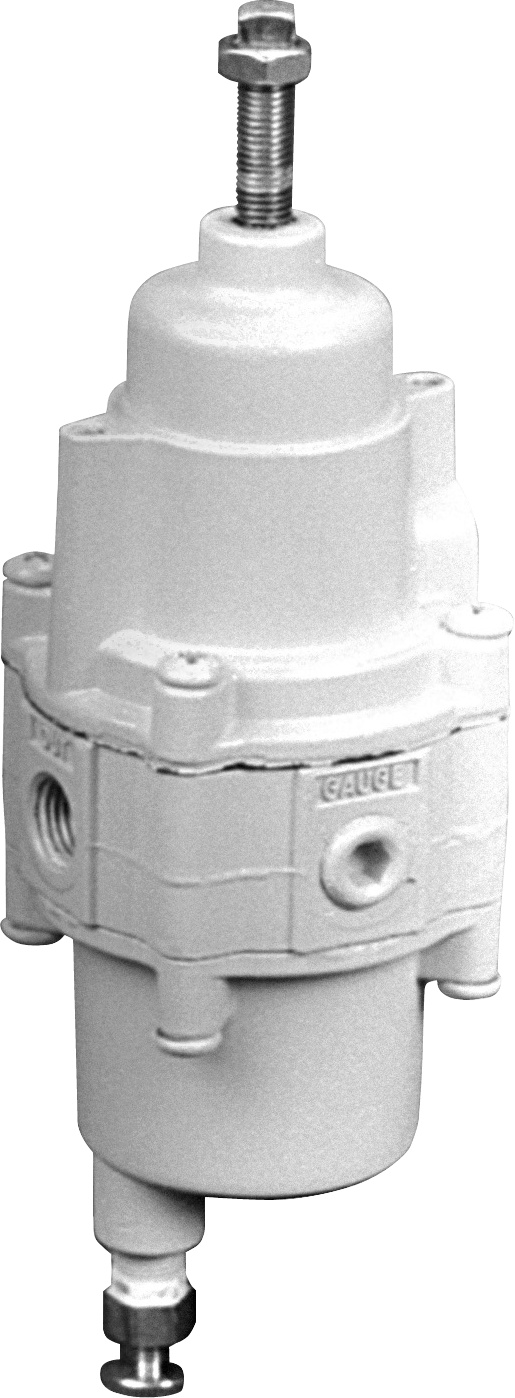

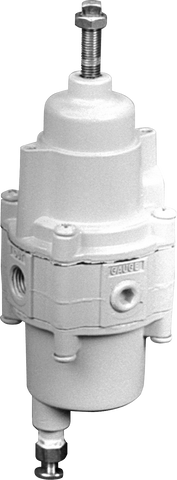

Type 51- T51 FRCT Corrosive TEC (NACE) Qualified Materials
NACE Constructed (Type 51FRCT Corrosive Tec) Materials of Construction for
Corrosive Tec Type 51FRCT
Aluminum alloy bonnet, body, and filter bowl,
316 stainless steel internals, Inconel alloy
range spring, nitrile diaphragm (fluorocarbon
optional), 316 stainless steel valve assembly,
and finished with an epoxy paint. All metallic
parts for this unit conform to NACE material
requirements #MR0175.
Features:
- Excellent regulation, stability and repeatability
- NACE Constructed (Type 51FRCT Corrosive Tec)
- Low droop
- Small package size
- Panel, bracket or pipe mounting
- Meets ATEX II 2 G Dc T 6 (Non-electrical certification)
- Fluorocarbon pintle seat (Type 51FR, Type 51AFR and Type 51FRCT)
- Pneumatic Instruments
- Controllers
- Chucks
- Actuators
- Can be Through-Panel Mounted with the Supplied Mounting Nut
- Bracket-Mounted with the optional bracket
- Mounted by their ports
Size
2.5" X 2.5" X 8.1"
Port Sizes
1/4 NPT
Sensitivity
1" (2.5 cm) of water
Pressure Ranges
0-30 psig (0-2.1 BAR)
0-60 psig (0-4.1 BAR)
0-120 psig (0-8.3 BAR)
0-60 psig (0-4.1 BAR)
0-120 psig (0-8.3 BAR)
Mounting Options
Pipe, Panel or Bracket
Temperature Range
0 to 180˚F (-18 to 82˚C)
Forward Flow Capacity
20 SCFM
(566 LPM)
(566 LPM)
Maximum Supply Pressure
259 psig (17.3 BAR)
Materials of Construction
Aluminum, Stainless Steel, Inconel,
Buna-N / polyester, Fluorocarbon,
acetal, polyphenylene sulfide
Buna-N / polyester, Fluorocarbon,
acetal, polyphenylene sulfide
Total Air Consumption @ Maximum Output
6 SCFH (2.8 LPM)
Effect of Changes in Flow on Regulated Pressure
2.5 psig over flow of 10 SCFM (0-
30 psig range, 1/4" NPT, 20 psig
set point)
30 psig range, 1/4" NPT, 20 psig
set point)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1 SCFM
(2.8 LPM)
(2.8 LPM)
Effect of Supply Pressure Variation on Outlet Pressure
0.45 psig max
