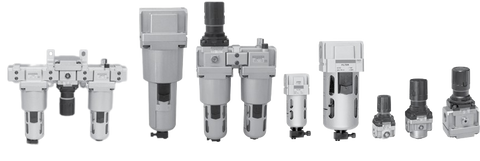

FRLs
FRLs feature modular design to eliminate fittings between components and save space. These devices are available in multiple sizes ranging from 1/8" to 1" NPT with varying flow rates by size/series, four filter variants ranging from 5 to 50 micron and hand adjustable drip rates. Marsh Filter Regulator Lubricator systems are ideal for cost effective treatment of compressed air.
Features:- Modular design for service & interchangeability
- Non-rising adjustment knob with push-pull lock ring feature
- Small package size and lightweight construction
- Competitively priced
- Pneumatic Systems
- Air Preparation and filtration
- Industrial tooling, machinery and equipment
Size
1/8", 1/4" NPT (11, 21 SCFM)
1/4", 3/8" NPT (61, 88 SCFM)
1/4", 3/8", 1/2" NPT (80, 167, 140 SCFM)
3/4", 1" NPT (175, 228 SCFM)
1/4", 3/8" NPT (61, 88 SCFM)
1/4", 3/8", 1/2" NPT (80, 167, 140 SCFM)
3/4", 1" NPT (175, 228 SCFM)
Port Size
1/8" NPT
1/4" NPT
3/8" NPT
1/2" NPT
3/4" NPT
1" NPT
1/4" NPT
3/8" NPT
1/2" NPT
3/4" NPT
1" NPT
Filter Connection
NPT
Pilot Operated
No
Spring Range
0-10 psi
0-30 psi
0-60 psi
0-140 psi
0-30 psi
0-60 psi
0-140 psi
Application(s)
Industrial
Filters
40 Micron Filter, Standard
25 Micron Filter
5 Micron Filter
0.1 Micron Filter
0.01 Micron Filter, Standard
25 Micron Filter
5 Micron Filter
0.1 Micron Filter
0.01 Micron Filter, Standard
Find Your Part Number
Not sure? Call for help. Phone: 304-387-1200
| Part Number | Description |
|---|
