Type 51- T51 FR Filter-Regulator

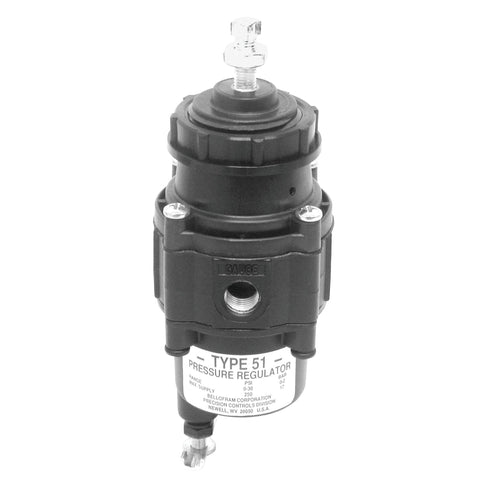

The Bellofram Precision Controls Type 51 FR is a compact pneumatic filter-regulator that combines air filtration with stable downstream pressure regulation. Its corrosion-resistant construction contains no brass components and includes a fluorocarbon pintle seat, while the regulator design provides low droop and good stability and repeatability. Pipe, panel, and bracket mounting options support flexible installation, and the Type 51 FR meets ATEX II 2 G Dc T6 non-electrical certification. Typical applications include pneumatic instruments, controllers, chucks, actuators, and general industrial air-preparation systems.
Features:
- Excellent regulation, stability and repeatability
- Corrosion-resistant construction (no brass components, Type 51FR and Type 51AFR)
- Low droop
- Small package size
- Panel, bracket or pipe mounting
- Meets ATEX II 2 G Dc T 6 (Non-electrical certification)
- Fluorocarbon pintle seat (Type 51FR, Type 51AFR and Type 51FRCT)
- Pneumatic Instruments
- Controllers
- Chucks
- Actuators
- Can be Through-Panel Mounted with the Supplied Mounting Nut
- Bracket-Mounted with the optional bracket
- Mounted by their ports
Size
2.5" X 2.5" X 6.95"
Port Sizes
1/4 NPT
Sensitivity
1" (2.5 cm) of water
Pressure Ranges
0-30 psig (0-2.1 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
0-60 psig (0-4.1 BAR)
0-100 psig (0-6.9 BAR)
Mounting Options
Pipe, Panel or Bracket
Temperature Range
-0 to 125˚F (-18 to 52˚C)
Forward Flow Capacity
20 SCFM
(566 LPM)
(566 LPM)
Maximum Supply Pressure
253 psig (17.3 BAR)
Materials of Construction
Aluminum, Plated Steel,
Acetal Resin, Buna-N / Polyester,
Music Wire, Fluorocarbon
Acetal Resin, Buna-N / Polyester,
Music Wire, Fluorocarbon
Total Air Consumption @ Maximum Output
6 SCFH (2.8 LPM)
Effect of Changes in Flow on Regulated Pressure
2.5 psig over flow of 10 SCFM (0-
30 psig range, 1/4" NPT, 20 psig
set point)
30 psig range, 1/4" NPT, 20 psig
set point)
Exhaust Capacity @ 5 psig (0.4 BAR) above setpoint
0.1 SCFM
(2.8 LPM)
(2.8 LPM)
Effect of Supply Pressure Variation on Outlet Pressure
0.45 psig max
